Product Details:
Payment & Shipping Terms:
|
| Size: | 2550mm*1650mm*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Clamping: | Adjustable Pressure Pneumatic | No. Of Nozzles: | 12PCS Single Module |
| Mounting Speed: | 45000CPH | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| High Light: | 12 Heads SMT Mounting Machine,Single Module SMT Mounting Machine,45000CPH Intermediate Speed Mounting Machine |
||

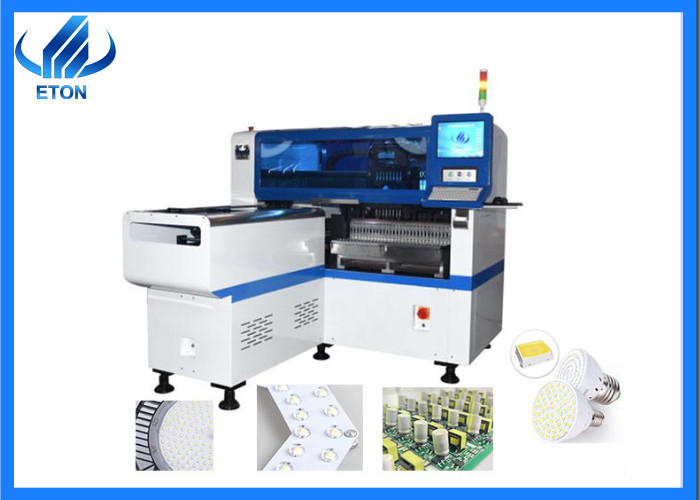

Single module 12 heads multifunctional intermediate speed mounting machine
Details

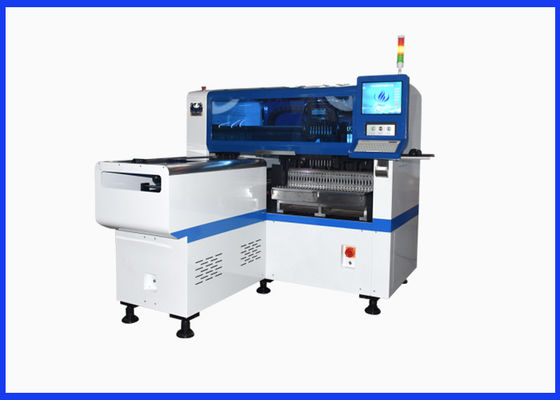

Single module magnetic linear motor multifunctional pick and place machine
Vision for the flight identification, mark correction
Apply to LED, capacitors, resistors, shaped components, etc
Apply to led tube, panel, lens, electric board, street light, etc
| ET-E8S-1200 pick and place machine | ||
| Dimension | Length* Width* Height | 2550mm*1650mm*1550mm |
| Total weight | 1700kg | |
| PCB | PCB Size | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm | |
| PCB Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| System | Windows 7 | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 2 sets of imported camera |
| Vision for the flight identification, mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 45000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 28PCS single module | |
| No. of nozzles | 12PCS single module | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Policy: sincere business, focus on R&D,manufacturing intention, considerate service, customer trust
Certificate
Product description
Packaging : vacuum packaging, packaging using wooden boxes.
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
After sales service:
Warranty period: one year, during this, any parts need to be repaired and replaced will be free
Visit customers regularly and gather information
Provide latest information about technology and equipment
FAQ
Do you have any service offices overseas?
We have service office in India, and have India engineer in Delhi and Mumbai, can support you.
What do you do if something goes wrong with my machine?
First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.
Is your software interface in English?
English interface and Chinese interface are both available.
