Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Power: | 380AC 50Hz | Size: | 2550*1650*1550mm |
| Delivery: | 15~30 Days | Brand: | ETON |
| High Light: | 45000CPH Pick And Place Machine,Height 15mm Pick And Place Machine,SIRA Single Module SMT Mounter |
||

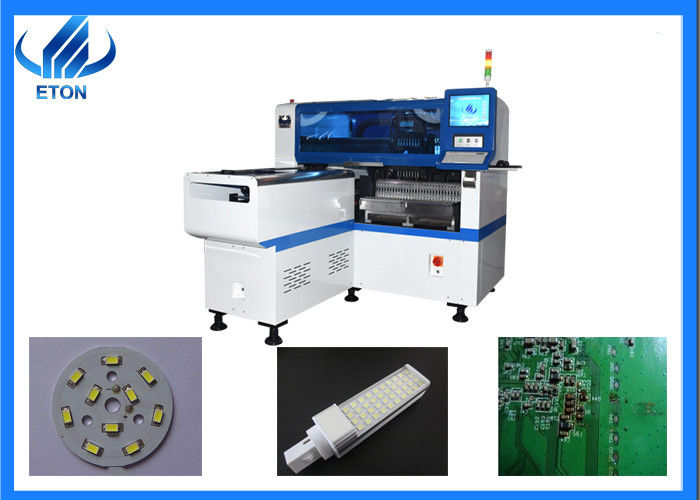

Single module multifunctional pick and place machine with capacity reach 45000 CPH
Technical parameter:
| Length | 2550mm |
| Width | 1650mm |
| Height | 1550mm |
| Total Weight | 1700kg |
| PCB Thickness | 0.5~5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard,Mouse |
| Mounting presicion | ±0.04mm |
| Mounting height | ＜15mm |
| Mounting speed | 45000CPH |
| Components | LED,capacity,resistor,shaped components,etc. |
| Components space | 0.2mm |
| No. of deeders station | 28 PCS single module |
| No. of nozzles | 12 PCS single module |
| Feeding way | Electric feeder with double motor |
| X,Y,Z Axis drive way | High-end magnetic linear motor+servo motor |
| Power | 380AC 50Hz |
Certification show
♦In 2009, won 4 invention and utility model patents.
♦In 2014, HT-E8(ETON the generation 2nd muti-function-speed pick and place machine)was completed R&D and begin selling.
Export Countries show:
Our machines are exported to various countries in the world, such as Japan, Turkey, India, Thailand, Pakistan, Egypt, Vietnam and so on.
Product Features:
►Application: Power driver,electric board,lens,linear bulb,household appliance ect.
►Components: Min. size0402 Max. height 15mm
►Mounting Components: LED,capacitors,IC,shaped components,ect.
►This machine is Single module Machine.
Company Profile:
Professional, excellent technology, sharing the results.
To create value for customers, creating benefits for society.
Packing& Delivery:
⇒ Adopt vacuum packing, outer packing adopt wooden case.
⇒ We can ship by land, sea, air.
FAQ:
Q1:Do you have your own R&D team?
A1:Yes, we have our own R&D team, they have been committed to the development of more efficient products.
Q2:Who is your client?
A2:Such as FSL, ETI,KONKA, OPPLE, MLS, HELI, TCL, SHILIN CEPL, SURYA are our client.
