Product Details:
Payment & Shipping Terms:
|
PCB Size: | Max:600*500mm Min:100*100mm | Size: | 1550mm*1650mm*1550mm |
---|---|---|---|
Total Weight: | 1500kg | Software: | R&D Independently |
No. Of Nozzles: | 12PCS Single Module | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
High Light: | Pneumatic Pick And Place Machine,Pick And Place Machine 45000CPH,CCC Single Module Smt Mounter |

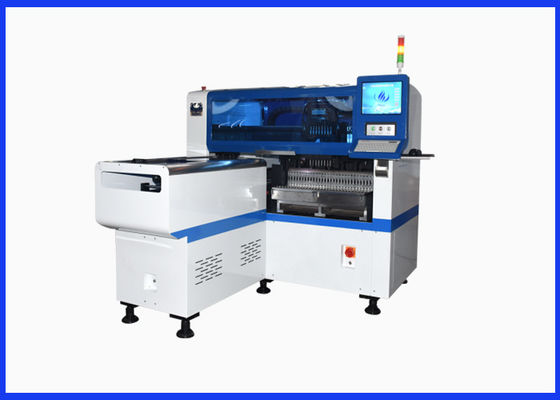

Single module full-automation high- precision multifunctional pick and place machine
Details
Single module multifunctional mounting machine
Vision for the flight identification, mark correction

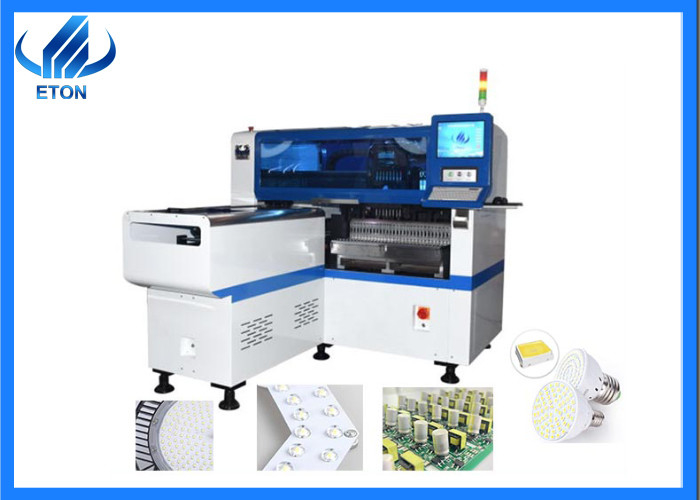

Apply to LED, capacitors, resistors, shaped components, etc
Apply to led tube, panel, lens, strip, street light, etc
ET-E8S-600 pick and place machine | ||
Dimension | Length* Width* Height | 1550mm*1650mm*1550mm |
Total weight | 1500kg | |
PCB | PCB Size | Max:600*500mm Min:100*100mm |
PCB Thickness | 0.5-5mm | |
PCB Clamping | Adjustable pressure pneumatic | |
Mounting mode | Group picking and separate placing, separate picking and separate placing | |
O.S. | System | Windows 7 |
Software | R&D independently | |
Display | Touch screen monitor | |
Vision System | No. of camera | 2 sets of imported camera |
Vision for the flight identification, mark correction | ||
Mounting speed | 45000CPH | |
No. of nozzles | 12PCS single module | |
No. of feeders station | 28PCS single module |
Company information
Certificate
Exhibition show
Product description
Packaging : vacuum wooden boxes packaging
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery
After sales service:
Warranty period: one year
Visit customers regularly and gather information
Provide latest information about technology and equipment
Free software upgrade
FAQ
What is the direction of transmission of machines?
The transmission direction of this machine is both direction
Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
What is the delivery date?
We will deliver the goods after 30 days' deposit.
