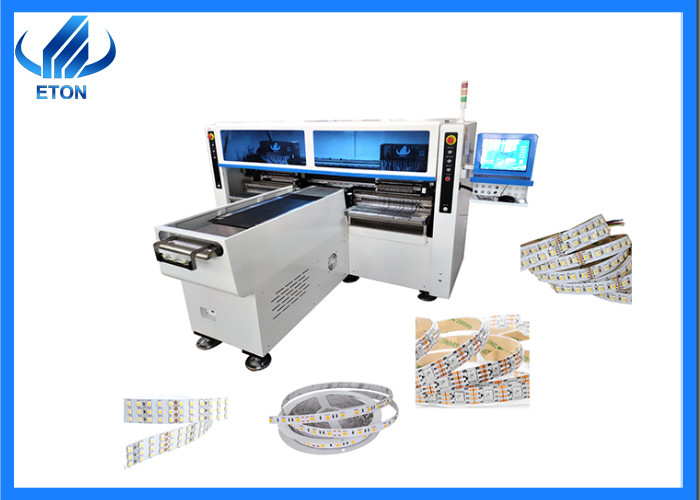

Automatic Calibration SMT Mounting Machine 250000CPH For Strip

large.img.alt
large.img.alt

Large Image :  Automatic Calibration SMT Mounting Machine 250000CPH For Strip

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC,CE,SIRA
Model Number: HT-T9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: vacuum wooden boxes packing
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Size: 3100 Mm*2300 Mm *1550 Mm PCB Size: 250mm*any Length
PCB Thickness: 0.5-1.5 Mm Mounting Speed: 200000-250000CPH
No. Of Feeders Station: 68 PCS No. Of Nozzles: 68 PCS
High Light:

Automatic Calibration SMT Mounting Machine

,

SMT Mounting Machine 250000CPH

,

250mm PCB Flexible Strip SMT Mounter

Automatically calibration ultra-high speed SMT machine for flexible strip( no wire)

Product description

Dual arm four module high speed pick and place machine, capacity reach 250000CPH
Vision alignment, Mark correction
Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc
Application: flexible strip( any length)

Features



High speed

Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
The capacity reach 250000CPH
Producing 4 types materials at the same time with high capacity, available for 5 M,50 M or any length of flexible strip and roll to roll.

High precision With a new visual recognition system, five imported cameras, visual alignment, Mark correction technology, it can be automatically corrected, available for RGB
Exclusive patent technology group to take and group to mount


Technical parameter

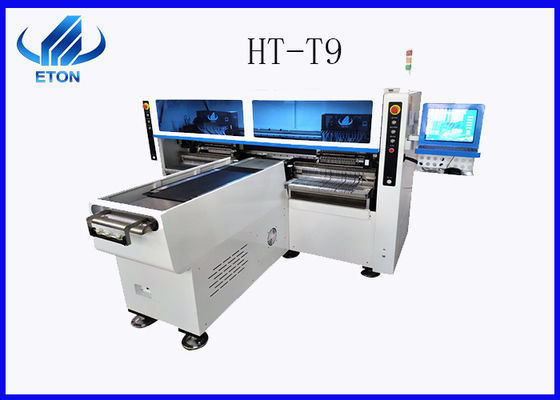

HT-T9 pick and place machine
Dimension Length* Width* Height 3100mm*2300mm *1550mm
Total weight 1700kg
PCB PCB Size 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Vacuum adsorption, cylinder splint, adjustable track width
  Mounting mode Group to take and group to mount
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 5PCS(Digital camera)
  Vision alignment, Mark correction
  Mounting precision +0.02mm( repeat precision)
  Mounting speed 200000-250000CPH
  Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
  No. of feeders station 68PCS
  No. of nozzles 68PCS
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor





Company information

Shenzhen ETON Automation Equipment Co. LTD, which is advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.

Automatic Calibration SMT Mounting Machine 250000CPH For Strip 0

Certificate

Automatic Calibration SMT Mounting Machine 250000CPH For Strip 1

Automatic Calibration SMT Mounting Machine 250000CPH For Strip 2

Packaging and payment

vacuum wooden boxes packing
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery


After sales service


Warranty period: one year

Provide latest information about technology and equipment

Free software upgrade


FAQ

Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
manufacturer. We have our own industrial park.
