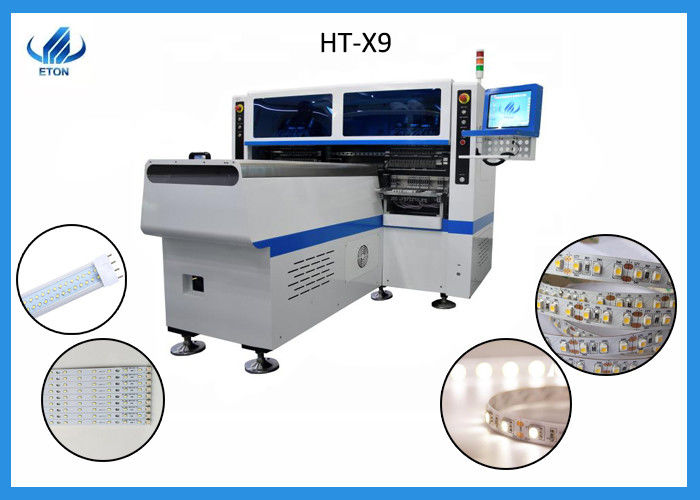

68 Heads dual System Led Placement Machine 200000CPH

68 heads Fully automatic dual system high-speed led placement machine, capacity reach 200000CPH

► Features:

1.High stability: Use high stability electronic dual motors, high-end magnetic linear motor + servo motor.

2. The wear resistance of screw rod is not easy to deviate and has high accuracy.

3.The guide rail has strong bearing capacity and high stability.

4.High speed: Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously. Producing with 2 types materials with high capacity. This special Mounter has a speed of 200000~250000 CPH. Can save space, labor costs, management costs.

5.Vision system: It has a set of vision recognition system, which can process the absorbed components into the required mounting angle through image recognition, and realize high precision mounting, with an accuracy of 0.02mm.

6.Exclusive patent technology: Group to pick and group to mount.

7. High accuracy: 5 sets of imported camera, Vision alignment ,mark correction, can accurately identify the exact position of PCB board and the position of components and board.

8.High-quality hardware configuration for 24-hour machine operation.

► Technical parameter:

► Application:

1. Mainly for linear products.

2. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.

3.Components: LED3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.

4. Mounted products: LED tube, flexible strip, panel light, Down-lights, street light, spotlight, ceiling light display, etc.

► About our company:

•  Shenzhen ETON Automation Equipment Co., Ltd. always adheres to the mission of "professionalism, excellent technology, and sharing results"; "creating a national brand and building an international Chinese enterprise" as its goal; "creating value for customers and creating benefits for society" For the purpose, keep moving forward.

•  The company has been committed to the R&D and manufacturing of placement machine equipment, always with the concept of "serving customers", keeping up with the market trend, and launching LED light board placement machines, LED flexible light strip placement machines, A series of products such as non-wire flexible light strip placement machine, LED display placement machine, copper wire lamp placement machine, lens placement machine and module placement machine, maximize customer needs.

► Certificate of honor:

•  ETON advanced technology and innovation drives the revolution of market repidly, and obtains a number of intellectual property rechnologies, including 9 invention patents, 112 practical patents, 12 software copyrights,.

•  ETON has successively won the "National High-tech Enterprise Award", "Shenzhen Famous Brand Award", "2015 LED Technology Innovation Award", "The 4th China LED Initiative Award" and so on.

► Honorary customer:

We have exported machines to more than 20 countries/regions such as India, Egypt, South Korea, Turkey, Brazil, etc. Domestically, such as FSL, ETI, NVC, TCL, KONKA, OPPLE, MLS are our customers, and in India, such as RK , Surya, and skyquad are all our customers.
