High capacity automatic 1.2 M PCB board LED tube pick and place machine
Product description

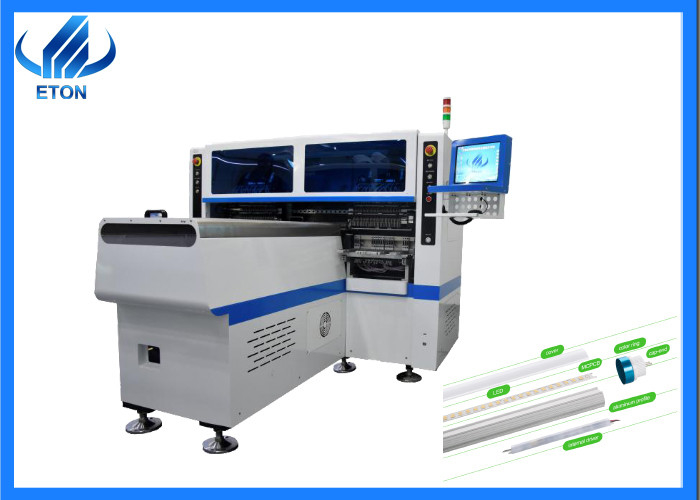

Dual arm magnetic linear LED ultra-high speed pick and place machine
Vision alignment, mark correction
Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc
Application: LED tube, flexible strip, panel light, display screen, etc
Features
The capacity reach 200000-250000CPH
It is composed of high-end magnetic linear motor + servo motor
Apply to the 0.6M,0.9M, 1.2M rigid PCB and 0.5M, 1M LED flexible strip
It can produce with 2 types of materials with high capacity at the same time
Exclusive patent technology: Group to pick and group to mount
Technical parameter
| HT-X9 pick and place machine |
| Dimension |
Length* Width* Height |
2700mm*1780mm *1550mm |
| Total weight |
1500kg |
| PCB |
PCB Size |
Max:1200*350mm
Min:100*100mm
|
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| |
Mounting mode |
Group to take and group to mount |
| O.S. |
System |
Windows 7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input device |
Keyboard, Mouse |
| Vision System |
No. of camera |
5PCS(Digital camera) |
| |
Vision alignment, Mark correction |
| |
Mounting precision |
+0.02mm( repeat precision) |
| |
Mounting element height |
≦5mm |
| |
Mounting speed |
200000-250000CPH |
| |
Components |
LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc |
| |
Components space |
0.5mm |
| |
No. of feeders station |
34PCS |
| |
No. of nozzles |
68PCS |
| |
Power |
380AC 50Hz |
| |
Conveyor transmission |
MAX length:1200mm |
| |
Transmission speed |
＞500mm/sec |
| |
XYZ Axis drive way |
High-end magnetic linear motor + servo motor |
| |
Feeding way |
Electric feeder with double motor |
