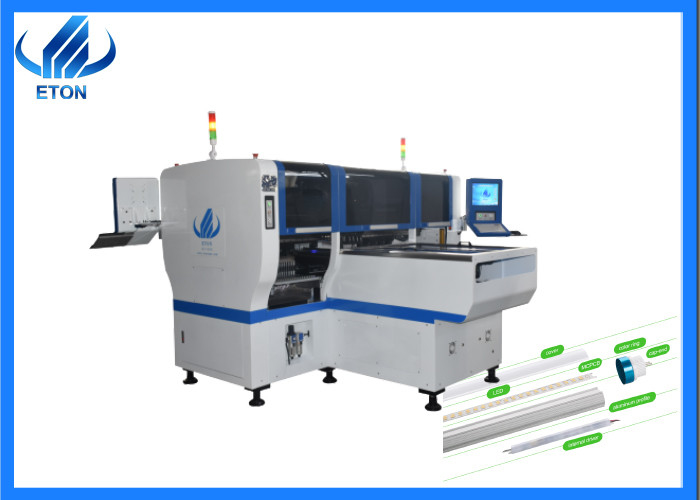

SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic

large.img.alt
large.img.alt

Large Image :  SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-E8D-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: vacuum wooden boxes packing. The specific size of the wooden box is determined according to the size of the machine
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Weight: 2500kg Size: 3150mm*2250mm*1650mm
PCB Thickness: 0.5-5mm PCB Clamping: Adjustable Pressure Pneumatic
No. Of Camera: 4 Sets No. Of Nozzles: 24PCS Double Module
High Light:

90000CPH PCB LED Pick And Place Machine

,

5mm PCB LED Pick And Place Machine

,

Pneumatic SMT Mounting Machine

high quality servo pick and place  multifunctional SMT LED pick and place machine



Product description



Double-module magnetic linear motor multifunctional pick and place machine

Vision for the flight identification, Mark correction

Components: LED, capacitors, resistors, IC, shaped components, etc( Max:17mm, Min:0402)

Application: LED lens, panel light, street light, linear bulb, tube, etc



Features



High precision Can mounting 0402 component, and the mounting precision reach 0.04mm
High speed the capacity reach 90000CPH, with 28 PCS heads and 48 PCS feeder stations
Dual system, dual module multi-functional mounting machine. To produce two different products at the same time

R& D Software

Independent and development software, free upgrades for life



Technical parameter



ET-E8D-1200 pick and place machine
Dimension Length* Width* Height 3150mm*2250mm*1650mm
Total weight 2500kg
PCB PCB Size Max:1200*300mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
  Mounting mode Group picking and separate placing, separate picking and separate placing
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 4 sets
  Vision for the flight identification, mark correction
  Mounting precision +0.04mm
  Mounting speed 90000CPH
  Components LED, capacitors, resistors, IC, shaped components, etc.
  No. of feeders station 48PCS single module
  No. of nozzles 24PCS double module
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor



Company information

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.



SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic 0

Certificate



SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic 1



SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic 2



Product line



SMT 90000CPH 5mm PCB LED Pick And Place Machine pneumatic 3



Remarks



Packaging :vacuum wooden boxes packing

Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery

After sales service:

Warranty period: one year

Provide latest information about technology and equipment

Free software upgrade



FAQ

Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.

Q: Is your software interface in English?

English interface and Chinese interface are both available.
