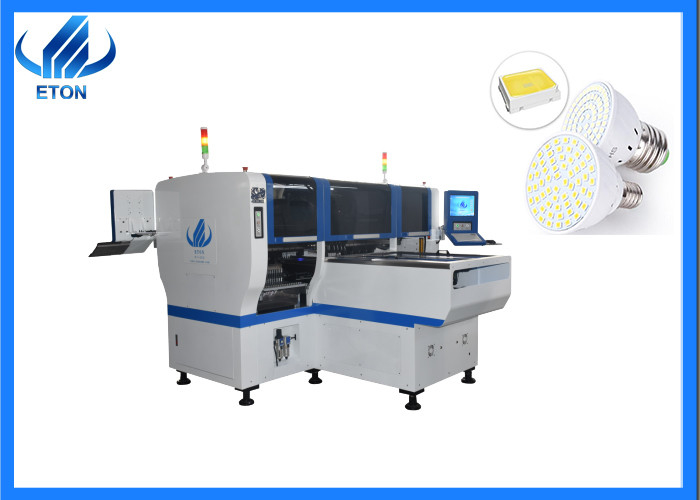

Dual System 90000CPH SMT Production Line Machine Height 15mm

large.img.alt
large.img.alt

Large Image :  Dual System 90000CPH SMT Production Line Machine Height 15mm

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: ET-E8D-600

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: wooden boxes with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Weight: 2200kg PCB Size: Max:600*350mm Min:100*100mm
Size: 1950mm*2250mm*1650mm Mounting Speed: 90000CPH
Mounting Precision: +0.04mm Feeding Way: Electric Feeder With Double Motor
High Light:

90000CPH SMT Production Line Machine

,

CCC SMT Production Line Machine

,

Height 15mm SMT Production Mounter

Dual system high performance SMT production line multi-functional mounting machine



Product description



Double-module multifunctional pick and place machine

Vision for the flight identification, Mark correction

Components: LED, capacitors, resistors, IC, shaped components, etc( Max:17mm, Min:0402)

Application: power driver, electric board, lens, linear bulb, tube, etc



Features



Dual system, dual module multi-functional pick and place machine

Components: Min. size: 0402, Max. height: 15mm

Mounting components: LED, capacitors, resistors, IC, shaped components, etc.

Exclusive patented technology: electronic feeder feeding system, non-stop material re-loading function



Technical parameter

ET-E8D-600 pick and place machine
Dimension Length* Width* Height 1950mm*2250mm*1650mm
Total weight 2200kg
PCB PCB Size Max:600*350mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
  Mounting mode Group picking and separate placing, separate picking and separate placing
Vision System No. of camera 4 sets
  Vision for the flight identification, mark correction
  Mounting precision +0.04mm
  Mounting speed 90000CPH
  Components LED, capacitors, resistors, IC, shaped components, etc.
  No. of feeders station 48PCS double module
  No. of nozzles 24PCS double module
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way

Electric feeder with double motor



Company information

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.

Dual System 90000CPH SMT Production Line Machine Height 15mm 0

Certificate



Dual System 90000CPH SMT Production Line Machine Height 15mm 1

Dual System 90000CPH SMT Production Line Machine Height 15mm 2



SMT LED production process



process step details
Step1 Solder paste printing The solder paste is printed on the PCB pad through the stencil of the printer
Step2 Mounting machine Mount the lamp beads or other components on the designated position on the PCB
Step3 Reflow oven Melt the solder paste to make it adhere to the mounting components
Step4 conveyor Inspection of placement and soldering quality



Remarks



Packaging : wooden boxes with vacuum package

Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery

After sales service:

Warranty period: one year

Provide latest information about technology and equipment

Free software upgrade


FAQ

Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q: Is your software interface in English?

English interface and Chinese interface are both available.
