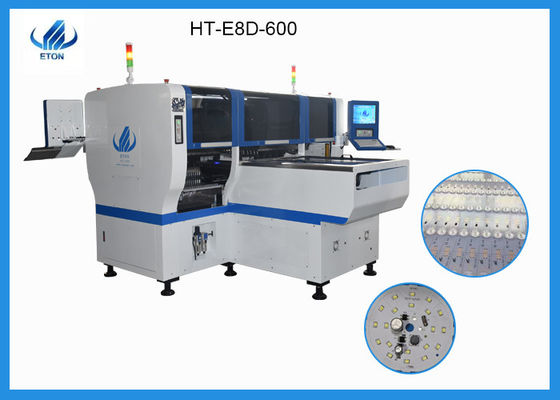

Automatic easy operate multifunctional 24 heads SMT Pick And Place Machine pcb printing mounter
♦ Features
1. The dual-system magnetic linear motor multifunctional high-speed placement machine can produce two different products at the same time.
2. The mounting head can take materials synchronously, which can improve the mounting efficiency of ordinary devices and ensure the precision of chip mounting. (Each placement head can rotate freely independently without affecting the placement speed)
3. High-speed synchronous recognition cameras: 4 sets of high-precision imported cameras, which can simultaneously perform visual correction on 24 sets of placement heads to absorb different components, improve placement efficiency and accuracy, and have a missing material replenishment function, which solves the precise placement of precision chips. Install small-size chips such as IC, QFN, etc. The smallest placement of 0402 chips. (Digital aerial photography camera, component recognition zero pause, avoid feeding error.)
4. Adopt X-axis magnetic linear motor + Y-axis low-noise precision screw structure, which greatly optimizes the service life and improves the placement accuracy; It has the characteristics of high precision, high stability and low wear.
5. The dual cantilever dual working area mode is more efficient, lower energy consumption, and fast; it has a wide range of adaptability and high compatibility.
♦ Technical parameter
|
HT-E8D-600 |
L*W*H | 1950*2250*1650mm |
Total Weight | 2200kg |
PCB Length Width | MAX:600*350mm MIN:100*100mm |
PCB Thickness | 0.5~5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group picking and separate placing, separate picking and separate placing |
Mounting height | <15mm |
No. of Camera | 4PCS |
Mounting Precision | ±0.04mm |
Mounting Speed | 90000CPH |
Components Space | 0.2mm |
Feeders Station | 48PCS single module |
No. of nozzles | 24PCS single module |
Power Consumption | 8KW |
Conveyor Transmission | MAX Length:600mm |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
X,Y,Z, Axis Drive way | High-end magnetic linear motor + servo motor |
♦ Application
1. Used in led lighting industry, power drive board, home appliance control board, etc.
2.Mounting components: LED chips, capacitors, resistors, lC, shaped components, etc.
3.Mounting products: It can perfectly mount various drivers, power supplies, circuit boards, lenses, linear bulbs, home appliance control panels, DOB, lamp tubes, street lights, down-lights, panel lights, corn lights, ceiling lights, wall lights, spotlights, etc.,
