20 heads Double module Multi-functional pick and place machine with vision system
Advantages of SMT:
- High assembly density, small size and light weight of electronic products
- High reliability, strong vibration resistance, low solder joint defects
- Easy to realize automation and improve production efficiency

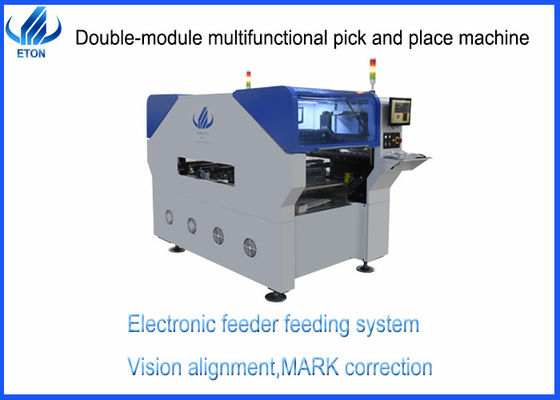

Introducing machine of RT-2
This is a double module magnetic linear motor multifunctional pick and place machine.Its largest PCB board size is 400*300mm, suitable for mounting parts such as LED, capacitors, resistors, IC, shaped components (max:17mm,min:0402).
Main parameter
| Technical parameter |
| Dimension |
1195*1930*1500mm |
| Total weight |
2500kg |
| PCB |
size |
Max:400*300mm
Min:50*50mm
|
| Thickness |
0.1-6mm |
| Clamping |
Electric clamping |
| Mounting mode |
Group picking and separate placing,separate picking and separate placing. |
| O.S. |
System |
Windows 7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input device |
Keyboard,mouse |
| Vision system |
camera |
4 PCS |
| Mounting precision |
±0.04mm |
| Mounting element height |
≤5mm |
| Mounting speed |
60000-70000 CPH |
| Components |
LED,capacitor,resistors,shaped components,etc. |
| Components space |
0.2mm |
| Feeder station |
64 PCS |
| Nozzles |
20 PCS |
| Power |
AC 380V |
| Power consumption |
8KW |
| Operating environment |
23℃±3℃ |
| Transmission mode |
single |
| Position mode |
Optical |
| Gas consumption |
0.4-0.6mpa 150N/min |
| Electric control |
Independent research and development by ETON |
| Motion control card module 1 set |
Independent research and development by ETON |
| XYZ axis drive way |
High-end magnetic linear motor and servo motor |
| Feeding way |
Electric feeder with double motor |
Mounting mode

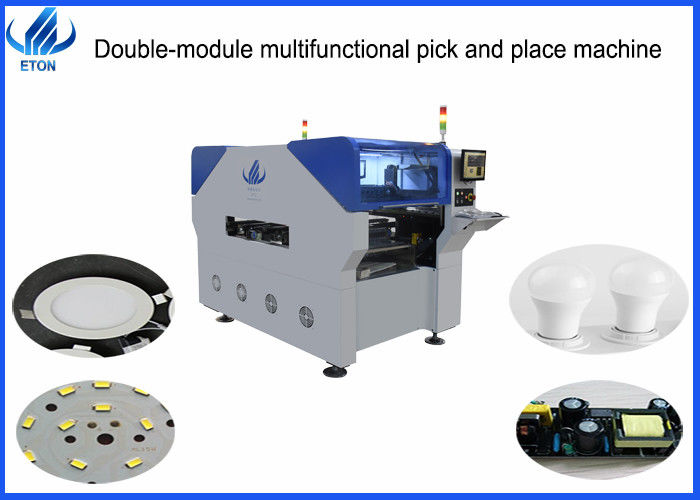

This machine RT-2 is suitable for a variety of products, such as bulbs, panel lights, drivers, downlights, DOB, etc., The placement method of this machine is group picking and splitting, splitting and splitting,because each head is controlled by an independent motor.
Company profile
Our ETON is the largest high-tech manufacturer in China with strong capability of design,R&D,manufacturing,sales and service.And rated as Shenzhen high-tech enterprise,China high-tech enterprise,Shenzhen TOP Brand,Industrial Special Contribution Award,etc.
Our company ETON independently developed a number of intellectual property technologies.
Project Cases
Our Industrial Park was successfully completed,equipped with an advanced processing and manufacturing center,strict quality control,and standardize production,streamline production production.
Packaging
We use vacuum wooden box packaging
Step 1:Film packaging
Step 2:Vacuum packing
Step 3:Wooden box packing
About our services
☺Professional solutions:provide professional SMT full line solution
☺Warranty:1 year warranty factory service
☺Free Installation:one-site free installation to ensure smooth production
☺Free technical training:professional training of operating and maintenance
☺Technical support:24 house online support
☺Software Upgrade:offer free software upgrade whole lifetime.
Payment and Delivery date
1. Term of Payment:30% depositing on the date of signing contract,70% payment before delivery.
2. Delivery date:Within 30 days after receiving the deposit
