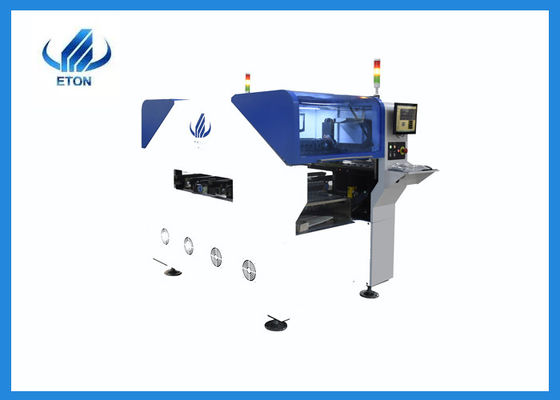

High quality Low cost 20 heads LED bulb/ IC SMT manufacturing machine SMT production line
♦ Product details
♦ Technical parameter
| Dimension |
Length:1195mm
Width:1930mm
Height:1500mm
Total Weight:2500kg
|
| PCB Length Width |
MAX:400*300mm
MIN:50*50mm
|
| PCB Thickness |
0.1~6mm |
| PCB Clamping |
Electric Clamping |
| Mounting height |
≦22mm |
| No. of Camera |
4PCS |
| Mounting Precision |
±0.04mm |
| Mounting Speed |
60000~70000CPH |
| Components Space |
0.2mm |
| Feeders Station |
64PCS |
| No. of nozzles |
20PCS |
| Components |
LED,capacitor,resistor,shaped components,etc. (MAX:17mm, MIN:0402) |
| X,Y,Z Axis Drive way |
Magnetic linear motor + servo motor |
| Feeding way |
Electric feeder with double motor
|
1. Features
(1).Magnetic linear motor multifunctional pick and place machine
(2).Zero-pressure mounting of LED, capacitors, resistors, ICs, special-shaped components, etc.
(3).Imported customized suction nozzle is adopted, which is not easy to lose parts during suction and placement, and the installation is convenient and durable.
(4). It is equipped with 20 placement heads and 64 feeder stations, which can suck 20 different materials at the same time, basically without replacing the nozzle.
(5).The whole machine adopts precision guide rail, which improves the precision of SMT placement.
2. Exclusive patented technology
(1).Electronic feeder feeding system. The feeding is accurate and not bad at all.
(2).Vision alignment flight identification, Mark correction
(3).Auto-optimization after coordinates generated, etc
3. Its technical advantages include
(1). Precise mechanical structure. Servo motor and imported transmission track are used to ensure the stability and control accuracy of mechanical movement.
(2). Precision intelligent placement head. Two groups of high-speed placement heads work at the same time, which greatly improves the cost-effectiveness of the equipment. High precision, high quality, high durability and long life.
(3). Controlled by industrial computer + independent dedicated controller, the system is stable, simple to operate and easy to learn.
(4). Simple and easy-to-use interface. Chinese and English operation interface.
(5). High-precision visual recognition system to identify various complex components. 4 sets of cameras, flight recognition camera + Mark camera, complete precise placement of components by scanning mark points.
(6).Double-motor electronic feeder, stable feeding, fast feeding speed, no need to repeat calibration. Through independent research and development, effective cost control is achieved, wide application range, high tolerance, precise stability and international synchronization, 1 year warranty, and extremely cost-effective.
Through independent research and development, effective cost control is achieved, wide application range, high tolerance, precise stability and international synchronization, 1 year warranty, and extremely cost-effective.
♦ Application

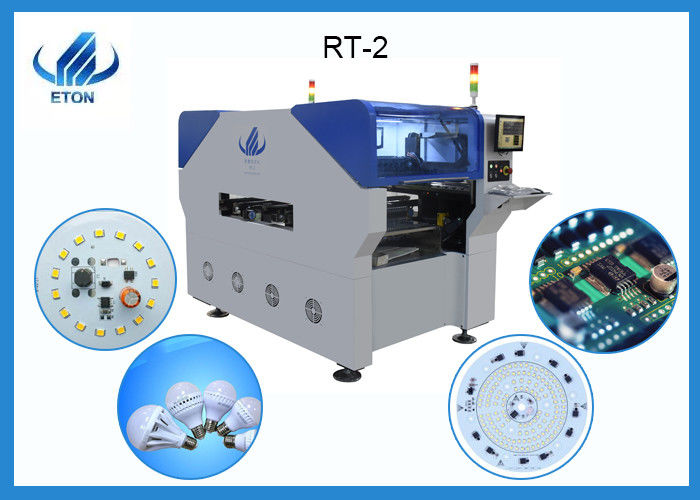

RT-2 is a multifunctional machine that can mount a variety of products, such as DOB, LED bulbs, LED panel lights, LED down-lights, LED spotlight, LED ceiling light, etc. Suitable for mounting various drive boards, power control boards, household appliances, etc.
♦ About our services
1. Warranty period: one year, any parts that need to be repaired and replaced during the warranty period are free.
2. Service station: India office and Indian engineers can provide you with services faster.
3. After-sales service: Send engineers to your factory for free installation and training.
4. Shipment: Shipment within 30 days after payment.
5. Transportation methods: sea transportation, road transportation, air transportation, etc.
6. Software updates: Enjoy free software updates for life.
7. 24 hours online, available for consultation at any time
8.Visit customers regularly and gather information.
♦ About our company
Shenzhen ETON Automation Equipment Co., Ltd. has been committed to the R&D and manufacturing of placement machine equipment, always with the concept of "serving customers", keeping up with the market trend, and launching LED light board placement machines, LED flexible light strip placement machines, A series of products such as non-wire flexible light strip placement machine, LED display placement machine, copper wire lamp placement machine, lens placement machine and module placement machine, maximize customer needs.
In 2020, Eaton Jiangxi Industrial Park was successfully completed, equipped with advanced processing and manufacturing centers, strict quality control, standardized production processes, and simplified production processes. ETON’s advanced technology and innovation quickly promoted the revolution in the market and obtained a number of intellectual property rights. In addition, ETON invented the fastest automatic placement machine with a speed of 250,000 CPH. It saves a lot of labor and production space. More than 20 counties including the United States, South Korea, India, Germany, Egypt, Turkey, Vietnam, Tunisia, and Thailand have gained a large market
share.
