Dimension: | 2550*1650*1550mm | System: | Windows7 |
---|---|---|---|
Software: | R&D Independently | Total Weight: | 1250kg |
Speed: | 40000CPH | Warranty: | 1 Year |
Power Consumption: | 4KW | Nozzles: | 12PCS |
Application: | PCB, Power Driver.electric Board.lens.linear Bulb.household Appliance Etc. | Feeders: | 28 PCS |
High Light: | 40000CPH Smd Pick And Place Machine,4KW Smd Pick And Place Machine,36mm Height SMT Production Line |

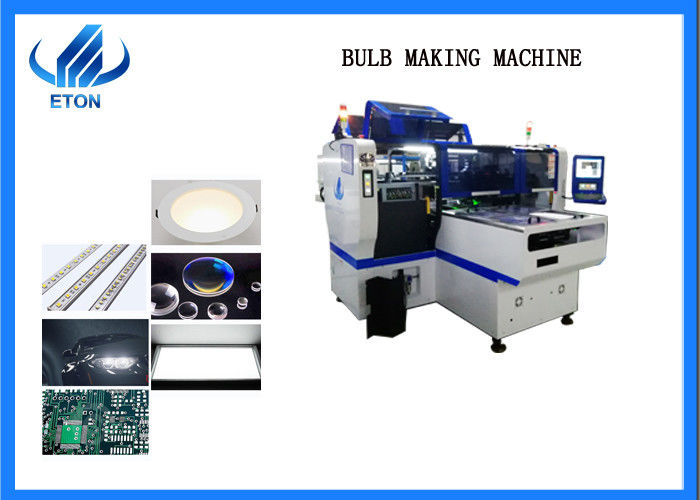

led bulb smd pick and place machine SMT production line
Dual module high performance universal magnetic linear motor multifunctional high speed mounter pick and place machine, with very low material loss rate, can realize high speed PCB board handling, save the time of getting in and out of the board, the unique flight identification visual alignment system, to achieve high stability and high precision, not stop material re-loading and coordinate automatic generation function, save time.
Applications
Applicability is wide and the pick and place machine can be used in the production of tube light,down light,panel light, bulb, outdoor displays etc.
Most of the electronic components can be mounted on the classification of a variety of led chips, IC components, lens, shaped components, etc.
The minimum of 0402 SMT component specification size, the highest mount is 36 mm , can satisfy the production variety products manufacturers
technical parameter
HT-E8S | ||
PCB | PCB length width | Max:1200*300mm min:100*100mm |
PCB thickness | 0.5~5mm | |
PCB clamping | Adjustable pressure pneumatic | |
Mounting mode |
ØGroup to picking and separate to placing ØSeparate to picking and separate to placing |
|
O.S. | system | Windows 7 |
software | R&D independently | |
display | Touch screen monitor | |
Input device | Keyboard , mouse | |
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
Mounting precision | 0.02mm(repeat precision) | |
Mounting height | <36mm | |
Mounting speed | 40000CPH | |
Components space | 0.2mm | |
No.of feeders station | 30PCS | |
No.of nozzles | 8PCS | |
Power | 380AC 50HZ | |
Power consumption | 4KW | |
Conveyor transmission | Max length:1200mm | |
Transmission speed | >500mm/sec | |
Transmission direction | Both direction | |
Transmission mode | Auto online drive | |
Air pressure | >5.0kg /cm² | |
Electrical control | Independent research and development by ETON | |
Motion control card module 1set | Independent research and development by ETON | |
X,Y,X axis drive way | Servo motor control for X,Y,Z axis | |
Feeding way | Electric feeder with double motor |
Application
Power driver,electric board,lens,linear bulb,household appliance etc.
Exclusive patented technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.
Certificate and Cooperators
This is our customer's factory operation chart.
After-sale Service
Remarks
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
FAQ
1) Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
2) How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
3) It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
5) What’s the termsof payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
