Name: | Pick And Place Machine | Dimension: | 3150*2250*1650mm |
---|---|---|---|
Power: | 380AC 50HZ | Mounting Height: | <36mm |
Visual Camera: | 2 Sets Of Imported Camera | Power Consumption: | 8KW |
High Light: | 36mm Height SMT Mounting Machine,SMT Mounting Machine 80000CPH,Led Flexible Roll SMT Mounter |

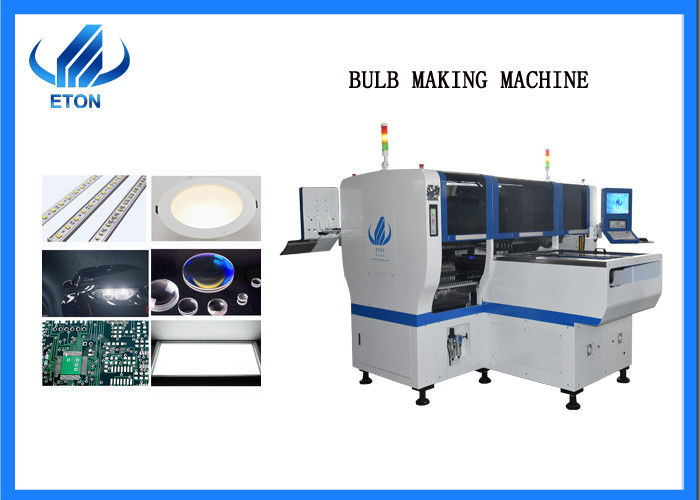

Full Automatic SMT mounting machine for led flexible light roll and roll
Details
The Difference between Double Module Mounting Machine and Single Module Mounting Machine is that the double mounting machine have dual system and to produce two different products at same time.
This is a multifunctional pick and place machine, it is can mounting LED,capacitors,resistors,IC,shaped components,etc.
This machine can meet the needs of producing two kinds of products at the same time. The mounting speed reaches 80,000 CPH, which greatly improves the production efficiency.
Applications
Applicability is wide and the pick and place machine can be used in the production of tube light,down light,panel light, bulb, outdoor displays etc.
Most of the electronic components can be mounted on the classification of a variety of led chips, IC components, lens, shaped components, etc.
The minimum of 0402 SMT component specification size, the highest mount is 36 mm , can satisfy the production variety products manufacturers
HT-E8D | ||
PCB | PCB length width | Max:1200*300mm min:100*100mm |
PCB thickness | 0.5~5mm | |
PCB clamping | Adjustable pressure pneumatic | |
Mounting mode |
Group to pick and separate to place Separate to pick and separate to place |
|
O.S. | system | Windows 7 |
software | R&D independently | |
display | Touch screen monitor | |
Input device | Keyboard , mouse | |
Vision system |
No.of camera |
2sets of imported camera Vision for the alignment identification,mark correction |
Mounting precision | 0.02mm(repeat precision) | |
Mounting height | <36mm | |
Mounting speed | 80000CPH | |
Components space | 0.2mm | |
Power | 380AC 50HZ | |
Power consumption | 8KW | |
Conveyor transmission | Max length:500mm | |
Transmission speed | >500mm/sec | |
Transmission direction | Both direction | |
Transmission mode | Auto online drive | |
Air pressure | >5.0kg /cm² | |
Electrical control | Independent research and development by ETON | |
X,Y,X axis drive way | High-end magnetic linear machine + Servo motor control for X,Y,Z axis | |
Feeding way | ||
Feeding system | No.of feeders station | Duel mode.totally 40 |
No.of nozzles | Dual mode.totally 16 | |
Feeding way | Electric feeder with double motor |
FAQ
1,What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
2,What is the delivery date?
We will deliver the goods after 30 days' deposit.
3,What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
4,What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.
5,How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
