LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear

LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear
LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear

Large Image :  LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-D12
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packaging according to customer needs
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Size: 1800mm*1050mm*1550mm Weight: 800kg
Max PCB Size: 1200*500 Mm Dispensing Accuracy: 0.1mm
Running Accuracy: 0.001 Power: 1.5KW
Highlight:

LED Lens Glue Dispenser Machine

,

1.2m PCB Glue Dispenser Machine

,

1.5KW LED Lens Mounting Machine

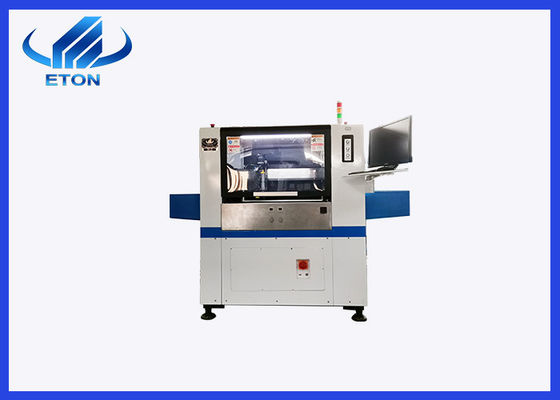

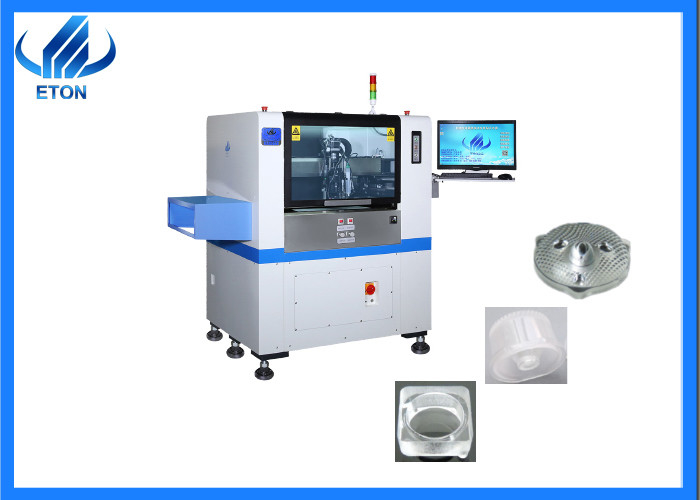

High accuracy low cost LED lens 1.2m PCB glue dispenser machine





Technical parameter



HT-D12 glue dispenser machine
Dimension Length* Width* Height 1800mm*1050mm*1550mm
Total weight 800kg
PCB Max PCB Size 1200*500 mm
Dispensing mode Pneumatic injection value
PCB Clamping Adjustable pressure pneumatic
Vision System No. of camera 1 set of industrial camera
  Dispensing accuracy 0.1mm
  Dispensing speed 90000CPH
  Heating temperature 200℃
  Running accuracy 0.001
  Power 220 AC 50Hz
  Power consumption 1.5KW
  Drive way Magnetic linear motor
  Max running speed 1200mm/ sec
  Electrical control Independent research and development by ETON





Product description

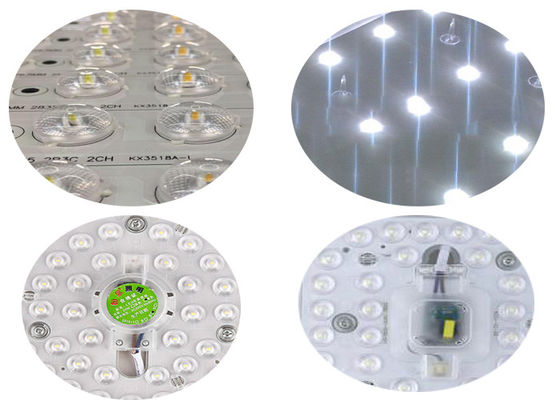

Suitable for dispensing all kinds of lenses

LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear 0



Feature

  1. The operation is simple and easy to understand with Chinese operation interface.

  2. Equipped with CCD positioning system, automatic vision positioning compensation, correction of board advance deviation.

  3. The super-size carrying track is suitable for PCB boards of various sizes.

  4. The non-contact high-speed injection valve realizes the continuous movement of the dispensing head and high efficiency.

  5. The use of injection valves brings high reliability and consistency of dispensing, as well as high productivity and material utilization

  6. Real-time monitoring of glue quantity, automatic prompt for low glue quantity

  7. The valve body has an automatic constant temperature function to ensure the fluidity of the colloid.



LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear 1





Company information

Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.

LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear 2

Certificate

LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear 3

Remarks



Packaging : vacuum wooden boxes packaging

Delivery:

By air: Small parts packaging

By sea: Pack and ship large and heavy machines

By railway: According to customer requirements

Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.

LED Lens 1.2m PCB Glue Dispenser Machine 1.5KW Magnetic linear 4



FAQ

Q:Do your machines only for LED lights?

No, our machines apply to not only LED light but also other products.

Q:What's LED pick and place machine?

As we know, LED is used popularly all over the world, so the demands and requirements of LED production line are increasing rapidly. And the LED pick and place machine the most important part in producing LED light. Patching the LED is the key process.

Q:What's about the guarantee of the machines?
The maintence:1 year whole machine, any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.
