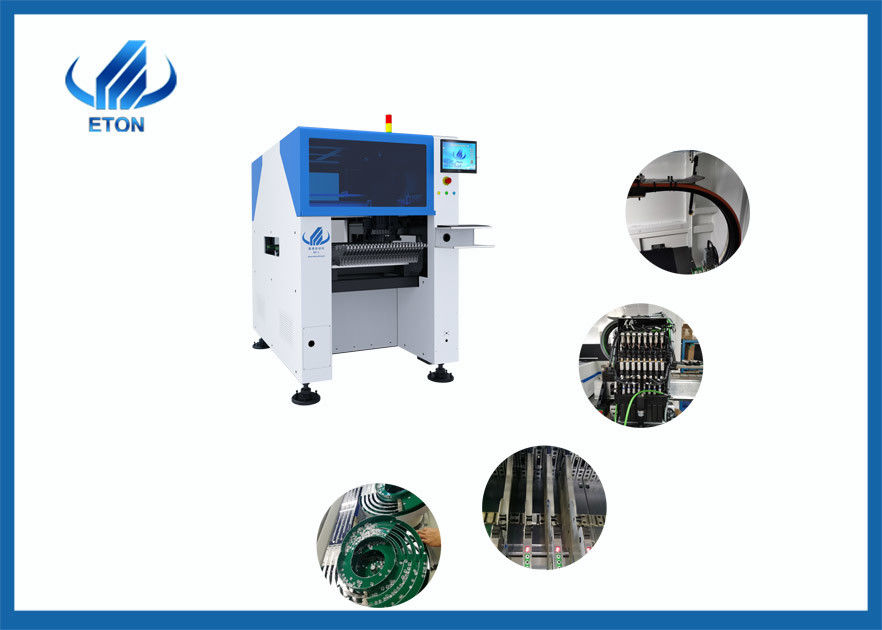

pcb 400mm multi-functional imported camera pick and place machine
Features
1.Integrated flying vision system
2.Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3.10 Simultaneous pick-up head
4.Placement rates up to 14,000 cph
5.The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6.Accurately place, manager, and track components with Smart Feeders
7.Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others
Product Applications
LED house lighting: LED tube, LED bulb, LED ceiling light, led panel, led candle light
LED lighting product: soft led strip, led strip, led module
LED screen.
| RT-1 pick and place machine |
| PCB |
PCB length width |
Max:400*350mm min:50*50mm |
| PCB thickness |
0.1~6mm |
| PCB clamping |
Electric clamping |
| Mounting mode |
ØGroup to pick and separate to place
ØSeparate to pick and separate to place
|
| O.S. |
system |
Windows 7 |
| software |
R&D independently |
| display |
Touch screen monitor |
| Input device |
Keyboard , mouse |
|
Vision
system
|
No.of camera |
2 sets of imported camera
Vision alignment ,mark correction
|
| Mounting precision |
0.02mm(repeat precision) |
| Mounting height |
<25mm |
| Mounting speed |
30000~35000CPH |
| Components space |
0.2mm |
| Power |
380AC 50HZ |
| Power consumption |
6KW |
| Conveyor transmission |
Max length:500mm |
| Transmission speed |
>1500mm/sec |
| Transmission direction |
Single |
| Transmission mode |
Auto online drive |
| Air pressure |
>5.0kg /cm² |
| Electrical control |
Independent research and development by ETON |
| X,Y,X axis drive way |
Servo motor control for X,Y,Z axis |
| Feeding way |
|
| Feeding system |
No.of feeders station |
26 PCS |
| No.of nozzles |
8 PCS |
| Feeding way |
Electric feeder with double motor |
Successful Experience:
ETON's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.
FAQ
1. Choose which mode of transportation?
Our modes of transportation are flexible, including water, land and air transportation.
2. Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
3. What is the delivery date?
We will deliver the goods after 30 days' deposit.
4. Is this machine easy to operate?
Of course, the operating system supports Chinese-English interface display, easy to understand and operate.
5. Why choose us?
Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
