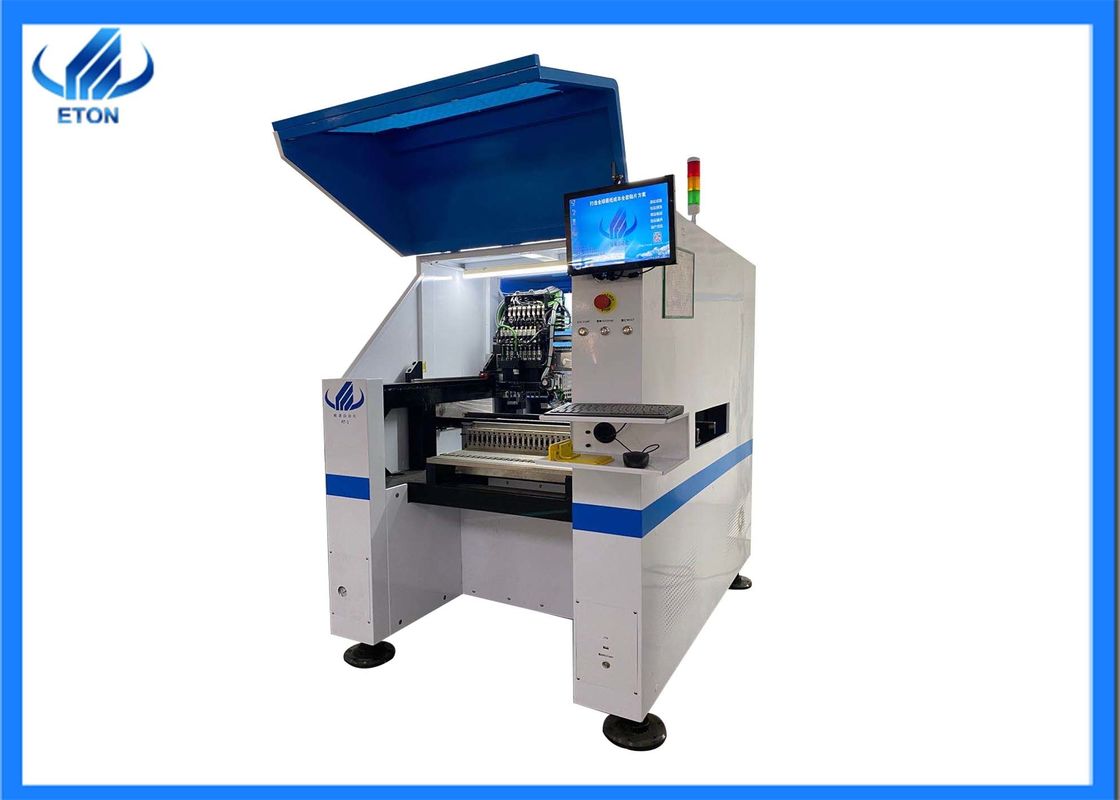

Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine

large.img.alt
small.img.alt

Large Image :  Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,SIRA,CCC,ISO
Model Number: RT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: EXW USD 39000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine PCB Thickness: 0.5~5 Mm
PCB Size: 1200*350mm Total Weight: 1250kg
Display: Touch Screen Monitor Feeders: 26 PCS
Heads: 10 Heads Speed: 40000cph
Mounting Precision: 0.04mm Software: R&D INDEPENDENTLY
High Light:

10 Heads SMD Mounting Machine

,

40000cph SMD Mounting Machine

,

40000cph Smd Placement Machine

Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine



smt Equipment Multi - Functional led Pick And Place machine in led light production line

Features
1. Integrated flying vision system
2. Servo driven, position feedback from 2 micron linear scales coupled with a precision placement head
3. 10 Simultaneous pick-up head
4. Placement rates up to 35,000 CPH
5. The GUI (graphical user interface) in its class using Windows®-based software allows programming in minutes
6. Accurately place, manager, and track components with Smart Feeders
7. Accurately places a wide range of components including 0402, LED, BGA,0.4mm pitch QFP,SMT Connectors and many others.




RT-1 pick and place machine
PCB PCB length width Max:400*350mm min:50*50mm
PCB thickness 0.1~6mm
PCB clamping Electric clamping
Mounting mode

Group to pick and separate to place
Separate to pick and separate to place

O.S. system Windows 7
software R&D independently
display Touch screen monitor
Input device Keyboard , mouse

Vision

system

No.of camera

2 sets of imported camera
Vision alignment ,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <25mm
Mounting speed 30000~35000CPH
Components space 0.2mm
Power 380AC 50HZ
Power consumption 6KW
Conveyor transmission Max length:500mm
Transmission speed >1500mm/sec
Transmission direction Single
Transmission mode Auto online drive
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way
Feeding system No.of feeders station 26 PCS
No.of nozzles 8 PCS
Feeding way Electric feeder with double motor





Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine 0


Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine 1
Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine 2
smt line led light production line layout
Multi Functional 10 Heads SMD Mounting Machine Smd Placement Machine 3
Successful Experience:
ETON's customer in 35 countries around the world
1. We have been helping customers to build a lot of new factories around the world.
2. Training more than 500 experts and technician for customers.
3. Became the most reliable Chinese partner for you.

Logistics and delivery
Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

RFQ
Q: How about your company-ETON?
we are an professional manufacturer specialized in SMT Pick and Place Machine, We are the TOP-1 brand in China.And have own Industrial park.

Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.

Q: What is your payment terms?
100% payment before delivery
or 50% deposit in advance and the rest before shipment.

Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
