Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light

Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light
Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light

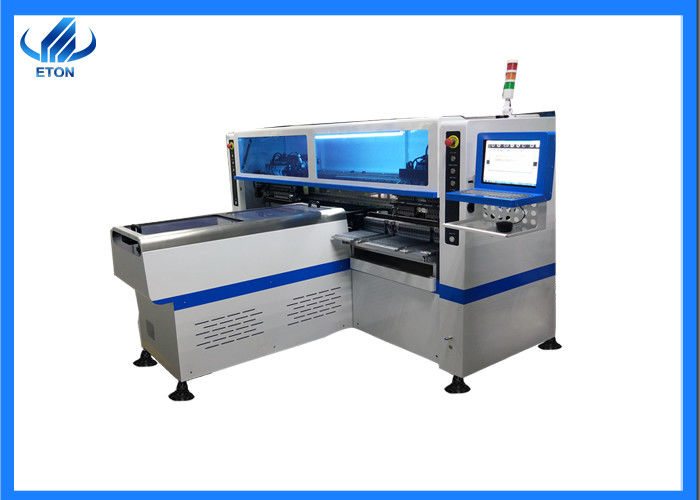

Large Image :  Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: ccc,ce,risa
Model Number: HT-T9

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: EXW USD 95000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine Components: LED 3014/3020/3528/5050 Resistor Capacitors
Speed: 200000CPH PCB Size: 250mm*any Length
Nozzles: 64 PCS Feeders: 64 PCS
Display: Touch Screen Monitor Power: 380V
High Light:

Touch Screen SMT Mounting Machine

,

200000CPH SMT Mounting Machine

,

200000CPH Smd Soldering Machine

Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light



flexible strip light Rope light LED making Machine smd soldering machine For Strip Light



Main Features of smd soldering machine

1. Control Syetem: Ball screw,magnetic and servo motors

2. Vision system: 5 sets of imported camera.vision alignment,Mark correction.

3. 68 placement heads: can pick up and calibrate components at one time.

4. 68 feeders: Sufficient feeding platform improves loading efficiency.

5. Components:LED 3014/3020/3528/5050 and resistors,capacitors,bridge rectifiers.

6. Built-in computer mainboard: the monitor, key board and mouse will ship with machine.

7. Video tutorials: make you operate machine easily

8. Free to upgrade software: and provide technology support for life.





Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light 0



Technical parameter of smd soldering machine

HT-T9
PCB PCB length width 250mm*any length
PCB thickness 0.5~1.5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take and group to mount
O.S. system Windows 7
software R&D independently
display LED monitor
Input device Keyboard , mouse

Vision

system

No.of camera

5 sets of imported camera

Vision alignment,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <15mm
Mounting speed 100000~150000CPH
Components LED 3014/3020/3528/5050 and resistors,capacitors ,bridge rectifiers.
Components space 0.2mm
No.of feeders station 64PCS
No.of nozzles 64PCS
Power 380AC 50HZ
Power consumption 6KW
Conveyor transmission Belt drive
Transmission speed >500mm/sec
Transmission direction Single (left to right or right or left)
Transmission mode Auto online drive
Position mode Optical
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
Motion control card module 1set Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way Electric feeder with double motor



Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light 1



Remarks:

1. Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.

2. Delivery time: 30 days after deposit.

3. Warranty: 1 year.(including spare parts)



Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light 2



Touch Screen SMT Mounting Machine Smd Soldering Machine For Strip Light 3



SMT LINE:

The surface mount assembly process mainly includes the following steps: solder paste printing, component mount, and reflow soldering. The steps are summarized as follows:
Stencil Printing: solder paste is a follow-up material for the surface adhesive components and PCB to connect with each other. First, the steel plate is etched or laser cut, and then the solder paste is printed on the welding pad of PCB by the squeegee of the Printing machine, so as to enter the next step.
Component Placement: Component Placement is the key technology and work focus of the entire SMT process. The process USES highly precise automatic mounting equipment to accurately place the surface mount components on the solder pad of the printed PCB through computer programming.As the design of surface adhesive components is becoming more and more precise, the distance between the joints is becoming smaller, so the technical level difficulty of placement operation is increasing day by day.
Reflow Soldering,(Reflow Oven) : Reflow Soldering is to have been placed on the surface of adhesive components of the PCB, after Reflow furnace first preheating with activated flux, to raise its temperature to 217 ℃ melt solder paste, feet and PCB Soldering pad connected components, then after cooling, cooling, make the solder curing, surface adhesive components and PCB bonding is completed.
