64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment 8Kw RT-2

64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment 8Kw RT-2
64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment 8Kw RT-2 64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment 8Kw RT-2 64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment 8Kw RT-2

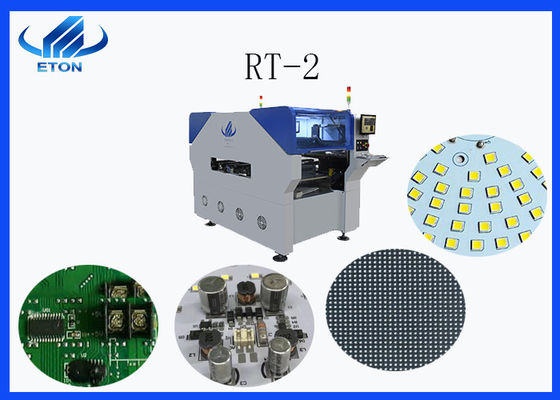

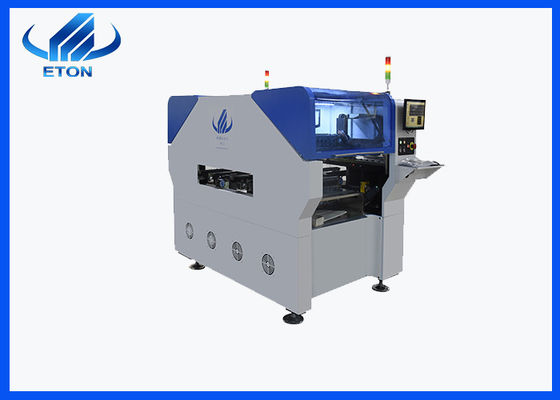

Large Image :  64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment 8Kw RT-2

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE, CCC, ISO
Model Number: RT-2
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 67000~77000
Packaging Details: WOODEN BOX
Delivery Time: 30 DAYS
Payment Terms: T/T
Supply Ability: 100 SETS/PER MONTH
Contact Now
Detailed Product Description
Name: Pick And Place Machine Weight: 2500KG
Length: 1200MM Feeder Stations: 64
Power: 380AC 50Hz Components Space: 0.2MM
Mounting Height: 22MM Power COnsumption: 8Kw
Highlight:

High Speed LED Mounter Machine

,

64 Feeder LED Mounter Machine

,

8Kw LED Surface Mounting Machine

64 Feeder High Speed LED Mounter Machine SMT Pick and Place Equipment

8Kw RT-2



Description:



Brand: ETON

Application: Led lighting and electrical board

Warranty: 1 year

PCB Length Width:Max:400*350mm Min:50*50mm

Weight:2200 kg

Power/power consumption: 380AC,50Hz/ 4kw



Technical parameters
Length*Width*Height 1200*1930*1500mm
Total Weight 2500kg
PCB Length Width Max:400*350mm Min:50*50mm
Mounting Precision

±0.02mm ,Vision alignment, Mark vision
Mounting speed 90000 CPH
Components LED,resistor,capacitors,shaped components,etc.
power/power consumption 380AC,50Hz/ 6kw
No.of Feeders Station 64 PCS
No.of nozzles 20 PCS
Mounting Height <25mm
Feeding way Electric feeder with double motor
No.of Camera 4 sets of imported camera
PCB Thickness 0.1mm~6mm



Features



1. Dule Modules double systems, can produce two different products at same time.

2. 20 heads with flight identification, mark correction.

3. High precision machine for LED bulb, downlight, street, display screen, driver and other electronic

PCB borads and so on.



Application:

1. LED lighting manufacturer

2. LED process company

3. PCBA making factory

4. Home applicance PCB board manufacturer



Tag:

led lamp manufacturing machinery,

led assembly machine,

led pick and place machine
