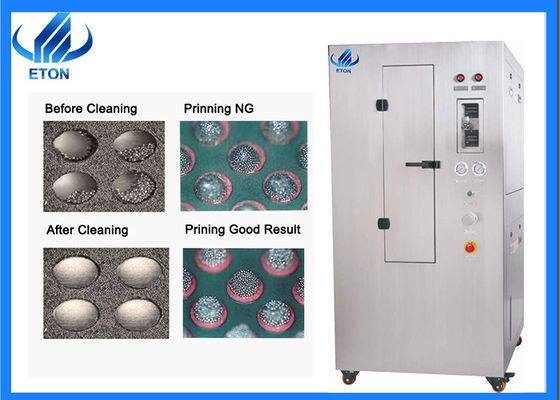

Pcb CCC Pneumatic Stencil Cleaning Machine 5min 1um Filter

Large Image : Pcb CCC Pneumatic Stencil Cleaning Machine 5min 1um Filter

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CCC/CE/SIRA
Model Number:	ET-SME24
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Packaging Details:	Wooden pakage
Payment Terms:	L/C, T/T
Supply Ability:	50 sets

Contact Now

Detailed Product Description

Name:	Pneumatic Stencil Cleaning Machine	Warranty:	1 Year
Clean Liquid:	Organic And Water-based Liquid	Clean Time:	2-5 MIn
Air Dry Time:	3-6 Min	Liquid Consumption:	200-400 Ml.pcs
Highlight:	Pcb Pneumatic Stencil Cleaning Machine , CCC Pneumatic Stencil Cleaning Machine , 5min PCB Cleaning Machine

Pneumatic stencil cleaning machine

Parameter

Item	Parameter
Clean liquid	Organic and water-based liquid
Stencil size	≤750*750 MM
Clean time	2-5 MIN
Air dry time	3-6 MIN
Liquid consumption	200-400 ML/PCS

Cleaning flow chart:

Step 1 : Push start button to start

Step 2: Air pump work

Step 3: Pump clean liquid

Step 4: 1 um filter

Step 5: Nozzle spray and rotation

Step 6: Wash stencil

Step 7: 1mm/50 um filter

Main spec:

Item	Technical spec
Stencil size	750(l)750(w)40mm(h) as max
Liquid tank	40 L as max
Clean method	360 ° rotation, double side liquid spray wash
Clean time	2-3 Min (solder paste)
Air blow dry time	3-5 Min
Air supply	0.5-0.7 Mpa
Air flow	400-600 L/Min
Vent size	124*30mm (H) max air speed 3m/sec
Filter system(3 class)	1st class/2nd class: 1mm/50 um(impurity and labels 3rd class: 1um (solder balls)
Machine weight	About 200 kg
Machine size	800 (l) 950(w) 1630(h) mm
