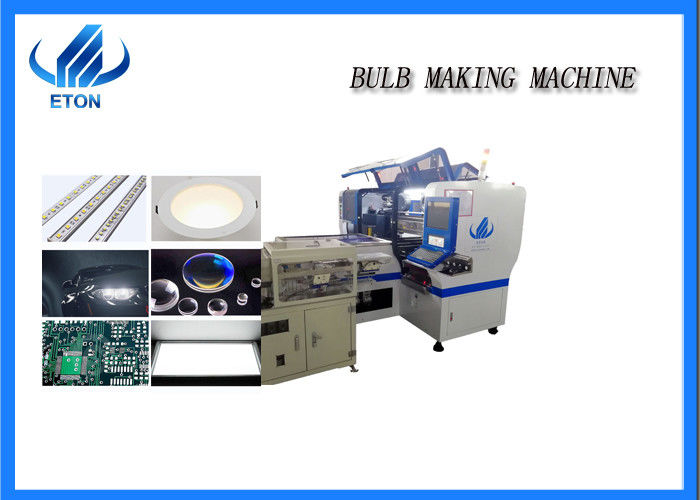

Magnetic Linear Motor 6 Heads SMD Mounting Machine 80000CPH

large.img.alt
small.img.alt

Large Image :  Magnetic Linear Motor 6 Heads SMD Mounting Machine 80000CPH

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Model Number: HT-E8D-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: FOB USD 81000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Place Of Origin: China Name: HT-E8D-1200
Warranty: 1 Year Dimension: 3150*2250*1650mm
Total Weight: 2000kg Power: 380AC 50HZ
Power Consumption: 8KW Mounting Speed: 80000CPH
Mounting Height: <36mm Visual Camera: 2 Sets Of Imported Camera
Drive Way: High-end Magnetic Linear Motor +servo Motor
High Light:

6 Heads SMD Mounting Machine

,

Magnetic Linear Motor SMD Mounting Machine

,

80000CPH Led Light SMD Mounter

Double module magnetic linear motor multifunctional pick and place machine



Product presentation

Dual system ,dual module mounter

High speed machine

To produce two different products at the same time.

Touch screen monitor

Both direction transmission



Features

Vision system

2 sets of imported camera

Vision for the alignment identification,mark correction

Visual recognition system can process the absorbed components into the required mounting angle through image recognition, and ensure the mounting accuracy, which can reach 0.02mm.

High efficiency

Dual system ,Two module ,16 nozzles totally,40 feeders station .

Flight camera component identification method is used to maximize the mounting speed, and the maximum mounting speed is 80000 points per hour.

Strong stability

The use of dual motor electronic flying feeding ensures the mounting accuracy, stability and speed.

Easy to maintain

Support Chinese and English operation interface, easy to understand and learn

Machine new equipment, powerful and easy to operate software, simple structure, easy maintenance, low power consumption.





Technical parameter
PCB
PCB length width Max:1200*300mm min:100*100mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
O.S.
system Windows7
software R&D independently
display Touch screen monitor
input Keyboard mouse
Feeding system
No. of feeders station Dual mode ,totally 40
No.of nozzles Dual mode,totally 16
Feeding way Electric feeder with double motor





Magnetic Linear Motor 6 Heads SMD Mounting Machine 80000CPH 0





Applications

Magnetic Linear Motor 6 Heads SMD Mounting Machine 80000CPH 1





Patented Technology
Electronic feeder feeding system

Vision alignment flight identification,mark correction

Non-stop material re-loading function

Auto-optimization after coordinates generated ,etc.



Certificate of honor

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.





Our Partners

ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.

Magnetic Linear Motor 6 Heads SMD Mounting Machine 80000CPH 2

Honour show

ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4th China LED first innovation award”.





Packaging & Shipping



Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.

Magnetic Linear Motor 6 Heads SMD Mounting Machine 80000CPH 3


Our Services



Attention

1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.



After-sale Service

we will send our engineer to your factory to install machine and training freely.

We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.

Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.



FAQ



1, What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.



2, What is the delivery date?

We will deliver the goods after 30 days' deposit.



3, What mode of transport does the goods adopt?

Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.



4, What is the direction of transmission of machines?

The transmission direction of this machine is single direction.From left to right or from right to left.



5, How about your operating system?

The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
