Product Details:
Payment & Shipping Terms:
|
| PCB Size: | Max:400*350 Mm Min:50*50 Mm | Mounting Speed: | 30000-35000CPH |
|---|---|---|---|
| No. Of Nozzles: | 10 PCS | No. Of Feeders: | 32 PCS |
| XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor | Length* Width* Height: | 1200 Mm*1930 Mm*1500 Mm |
| High Light: | Magnetic Linear Motor SMT Chip Mounter,35000CPH SMT Chip Mounter,Dual Language Smt Placement Machine |
||

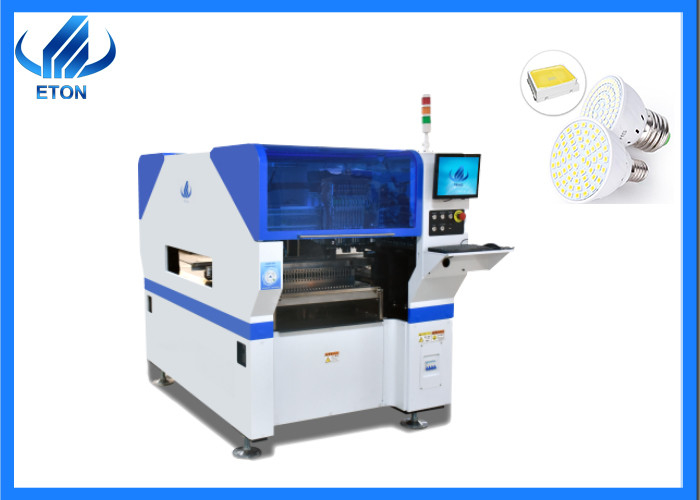

Dual language low cost automatic online chip mounter pick and place machine
Future
magnetic linear motor pick and place machine;
Different products can be mounted;
High placement accuracy;
Product description
Single module multifunctional mounting machine.
Vision alignment, Mark correction.
Components: LED, capacitors, resistors, shaped components, etc.
Application: led bulb, panel, down light, ceiling light, street light, etc.
Technical parameter
| RT-1 pick and place machine | ||
| Dimension | Length* Width* Height | 1200mm*1930mm*1500mm |
| Total weight | 2200kg | |
| PCB | PCB Size | Max:400*350mm Min:50*50mm |
| PCB Thickness | 0.1-6mm | |
| PCB Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 2 PCS |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 30000-35000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 32PCS | |
| No. of nozzles | 10PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Product details
Company information
Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new
technology enterprise, double soft enterprise.And specialize in SMT high-speed pick and place machine about ten years, and obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, etc.
Certificate
Packaging and payment
Packaging : vacuum wooden boxes packaging
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
FAQ
|
|
The transmission direction of this machine is both direction
|
|
| Yes, the electrical control is by ourselves and have exclusive patent technology. |
|
| We will deliver the goods after 30 days' deposit. |
|
| Manufacturer. We have our own industrial park. |
