Product Details:
Payment & Shipping Terms:
|
Dimension: | 1195*1930*1500 Mm | Total Weight: | 2500 Kg |
---|---|---|---|
Payment: | T/T | System: | Window 7 |
Software: | R&D Independently | Package: | Vacuum Packaging + Wooden Box Packaging |
Component Size: | MAX:17mm, MIN:0402 | Components: | LED、capacitor、resistor、shaped Components、etc. |
High Light: | Dual Modules SMT Assembly Machine,60000CPH SMT Assembly Machine,LED Bulb Pick And Place Machine |
♦ 60000CPH High productivity dual modules LED bulb SMT assembly pick and place machine SMT production line
♦ Features:
(1). Dual-module magnetic levitation multifunctional placement machine. Can produce two different types of material at the same time. Using the latest magnetic levitation drive, the placement accuracy is higher, the speed is faster, and the stability is stronger.
(2). Imported customized suction nozzle is adopted, which is not easy to lose parts during the suction and release process, and the installation is convenient and durable.
(3). It is equipped with 20 placement heads and 64 feeding stations, which can suck 20 different materials at the same time, basically without changing nozzles.
(4) The whole machine adopts precision guide rail, which improves the precision of SMT placement.
(5). Maximum mounting PCB size: 400*300mm
(6). The mounting speed can reach 70,000CPH, the smallest can be mounted 0402 components, the highest can be mounted 17mm components.
(7). Mounting parts: LED chip, lenses, capacitors, resistors, ICs and various special-shaped components, etc.
(8). Mounting Products:Perfectly suitable for mounting various types of drives, power supplies, circuit boards, lenses, linear bulbs, home appliance control panels and other products.
♦ Technical parameter:
Dimension |
1195*1930*1500mm Total Weight:2500kg |
PCB Length Width |
MAX:400*300mm MIN:50*50mm |
PCB Thickness | 0.1~6mm |
PCB Clamping | Electric Clamping |
Mounting height | ≦22mm |
No. of Camera | 4PCS |
Mounting Precision | ±0.04mm |
Mounting Speed | 60000~70000CPH |
Components Space | 0.2mm |
Feeders Station | 64PCS |
No. of nozzles | 20PCS |
X,Y,Z Axis Drive way | Magnetic linear motor + servo motor |
Feeding way |
Electric feeder with double moto
|
♦ Exclusive patented technology:
(1).Electronic feeder feeding system. The feeding is accurate and not bad at all.
(2).Vision alignment flight identification, Mark correction
(3).Auto-optimization after coordinates generated, etc
♦ Application:

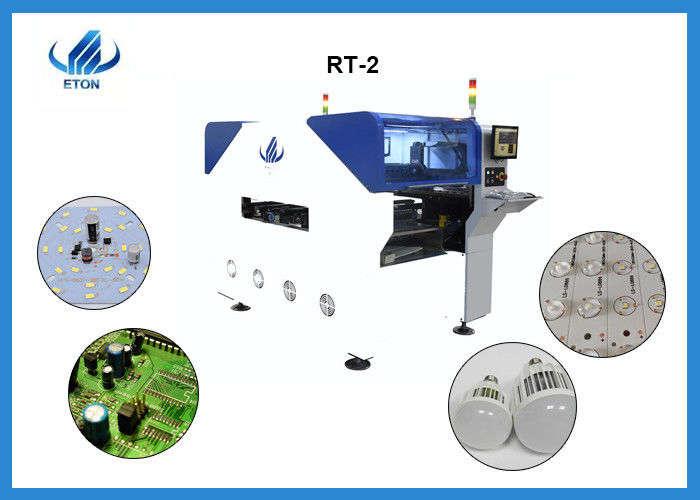

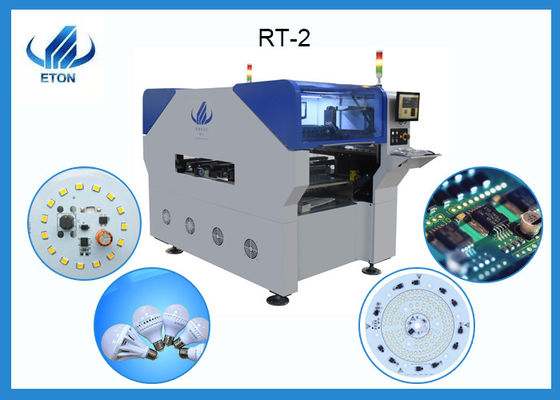

RT-2 is a multifunctional machine that can mount a variety of products, such as DOB, LED bulbs, LED panel lights, LED down-lights, LED spotlight, LED ceiling light, etc. Suitable for mounting various drive boards, power control boards, household appliances, etc.
♦ About our company:
Shenzhen ETON Automation Equipment Co., Ltd. is a high-tech enterprise with the concept of building a national brand, providing "professional, efficient, and low-consumption" products, focusing on R&D, production and sales of LED automatic high-speed energy-saving placement machines.
With the development trend of greening and energy saving, the rapid development of the LED industry and the requirements for production technology, YITONG and the United States, Taiwan, Hong Kong and many technical personnel, after four years of joint research, successfully developed a fast, stable and perfect ETON LED automatic high-speed energy-saving placement machine series products, with its unique technology, strong production capacity advantages, and perfect after-sales service system, completely subvert the LED placement machine industry field, and solve the problem of low production capacity of long light boards and long light strips. , High labor cost and other problems, and obtained a number of certificates and support issued.
The "speed" and "stability" of products are the capital that Eton is proud of. ETON's manufacturing plan, the pursuit of rigorous quality management and perfect after-sales service, provide customers with professional production lines and provide technical support. These advantages and services have enabled the company to rapidly develop into a manufacturer with strong R&D and manufacturing strength and influence in the field of LED automation equipment.
While ETON has made great achievements in the LED field, it has also been committed to technological innovation and development in the SMT field. It has successfully developed a variety of multi-functional general-purpose placement machines, which has won market recognition and good reputation.
♦ After service:
♦ Transport:
Sea transportation: It has strong traffic capacity, large transportation volume, cheap and convenient.
Railway transportation: Convenient, accurate departure time, relatively stable operation, safe and reliable.
Air transportation: The fastest method of transportation, used for expedited parcels.
♦ SMT line:
The SMT production line refers to the surface mount technology production line. It can be a semi-automatic line or a fully automatic line. It usually includes loading machine (feeder), stencil printer, reflow oven, conveyor, belt line, reflow oven, unloader, etc. For strip lights, different lengths require different length spaces.
♦ FAQ:
1.What is your machines quality?
A: We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
2.How many hours does the machine can operate per day?
A: Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
3. Is your software interface in English?
A:English interface and Chinese interface are both available.
4. What’s the terms of payment? What about the trade term?
A: T/T is OK. You can choose FOB Shenzhen.
