Length* Width* Height: | 1195 Mm*1930 Mm*1500 Mm | Total Weight: | 2500 Kg |
---|---|---|---|
PCB Size: | Max:400*300 Mm Min:50*50 Mm | PCB Thickness: | 0.1-6mm |
No. Of Camera: | 4 PCS | Mounting Speed: | 60000-70000CPH |
High Light: | Dual Modules LED Placement Machine,6mm PCB LED Placement Machine,4 Cameras Led Lights Assembly Machine |
LED placement machine with dual modules and 4 cameras that can touch the display frequency
Product description

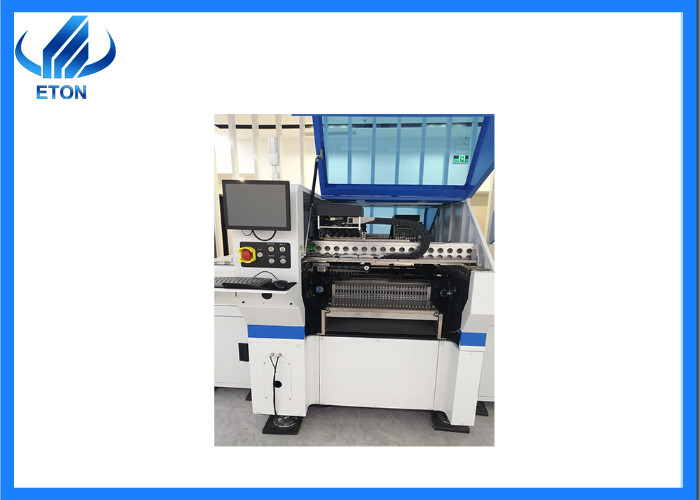

Double module magnetic linear motor multi-functional pick and place machine
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: electric board, DOB, down light, bulb, panel light, display, etc
Technical parameter
RT-2 pick and place machine | ||
Dimension | Length* Width* Height | 1195mm*1930mm*1500mm |
Total weight | 2500kg | |
PCB | PCB Size | Max:400*300mm Min:50*50mm |
PCB Thickness | 0.1-6mm (Fixtures required for less than 0.6mm) | |
PCB Clamping | Electric clamping | |
Mounting mode | Group picking and separate placing, separate picking and separate placing | |
Vision System | No. of camera | 4 PCS |
Vision alignment, Mark correction | ||
Mounting precision | +0.04mm | |
Mounting speed | 60000-70000CPH | |
Components | LED, capacitors, resistors, IC, shaped components, etc. | |
No. of feeders station | 64PCS | |
No. of nozzles | 20PCS | |
XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
Feeding way | Electric feeder with double motor |
Features
Double-module magnetic linear motor multi-functional pick and place machine
Mounting mode: group picking and separate placing, separate picking and separate placing
Vision alignment, Mark correction
The mounting precision is +0.04mm
Control system: magnetic linear motor, servo motor and Stepper motor
