Product Details:
Payment & Shipping Terms:
|
| Components: | LED, Capacitors, Resistors, IC, Shaped Components, Etc. | No. Of Nozzles: | 20 PCS |
|---|---|---|---|
| No. Of Feeders Station: | 64 PCS | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| Feeding Way: | Electric Feeder With Double Motor | PCB Size: | Max:400*300 Mm Min:50*50 Mm |
| High Light: | Electric Feeder SMT Placement Machine,High Precision SMT Placement Machine,e 70000CPH Smt Pick And Place Equipment |
||

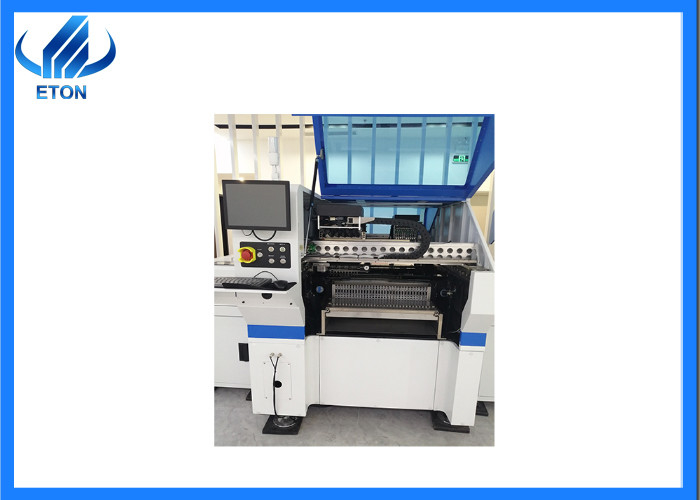

Durable and easy-to-maintain high-precision SMT placement machine
Technical parameter
| RT-2 pick and place machine | ||
| Dimension | Length* Width* Height | 1195mm*1930mm*1500mm |
| Total weight | 2500kg | |
| PCB | PCB Size | Max:400*300mm Min:50*50mm |
| PCB Thickness | 0.1-6mm (Fixtures required for less than 0.6mm) | |
| PCB Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| Vision System | No. of camera | 4 PCS |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 60000-70000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 64PCS | |
| No. of nozzles | 20PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor |
|
Product description

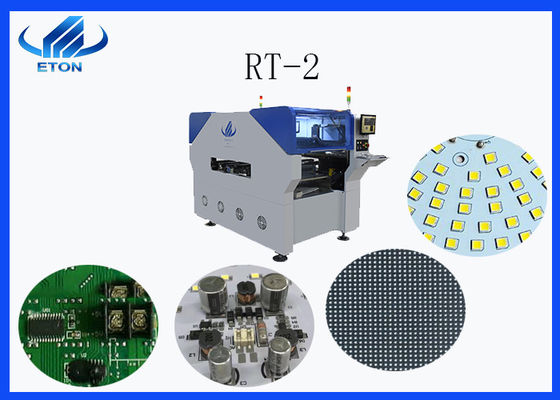

Double module magnetic linear motor multi-functional pick and place machine
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: electric board, DOB, down light, bulb, panel light, display, etc
Features
| High precision | Control system: magnetic linear motor, servo motor and Stepper motor. The mounting precision is +0.04mm |
| Place different products | Mounting mode: group picking and separate placing, separate picking and separate placing |
| High speed |
Double-module magnetic linear motor multi-functional pick and place machine. Vision alignment, Mark correction |
Details
Company information
Shenzhen ETON Automation Equipment Co., LTD specializes in SMT high-speed pick and place machine about ten years, and obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, etc.
Certificate
Exhibition
Delivery
FAQ
Do you have any customers in India? How many machines are there in India?
Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
Can I visit the production site of your machines in India?
I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
