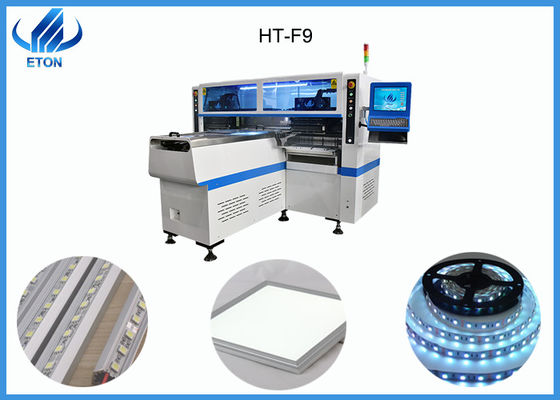

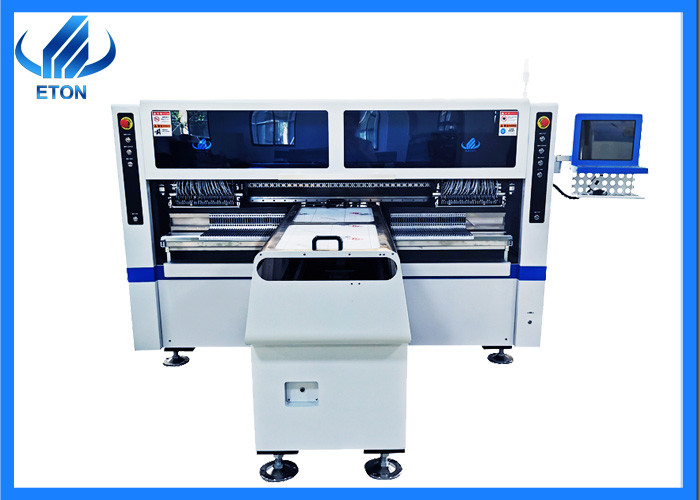

Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter

Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter
Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter

Large Image :  Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC\CE\SIRA
Model Number: HT-F9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB USD 46000~86000/sets
Packaging Details: Wooden case
Delivery Time: 15~30 days
Payment Terms: L/C, T/T
Supply Ability: 50 PCS per momth
Contact Now
Detailed Product Description
Name: SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter Country Of Origin: Shenzhen,China
Warranty: One Year Total Weight: 1700kg
System: Windows 7 Heads: 68 PCS
Max PCB Size: 1200*330mm Applicable Components: 0402,0805,0603,1206
Application: SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line
High Light:

Pneumatic SMT Pick And Place Machine

,

250000CPH SMT Pick And Place Machine

,

CCC Led Chip Mounter

SMT pick and place machine super high-speed led chip mounting with high precision



Introducing company

  1. A leading manufacturer of automatic high-speed pick and place machine
  2. The largest high-tech LED light making ,machine in China
  3. We have 9 invention patents,112 practical patents,12 software copyright
  4. There is 50000 square meters modern intelligent industrial parks,equipped with an advanced processing and manufacturing center
  5. There are fastest machine mounting speed in the world,the capacity reach 250000 CPH



Feature of machine F9

  1. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip.
  2. Producing with producing 4 types materials at the same time with high capacity
  3. Available for board with any proportion of LED chip and resistor.
  4. Dual arm four module,17 nozzles for each mounting part,part A/B/C/D can be mounted separately or synchronously

Technical parameter



Length*Width*Height 2700*2300*1550mm
PCB Length width

Max:1200*330mm

Min:100*100mm
PCB thickness 0.5~5mm
PCB clamping Adjustable pressure pneumatic
Mounting mode Group to take group to mount
camera

5 PCS

Vision alignment,mark correction
Mounting precision ±0.02 mm(repeat precision)
Mounting element height ≤5mm
Mounting speed 200000~250000CPH
Components LED 3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers
Components Space 0.5mm





Advantage of machine F9

  • Highspeed pick and place machine,,the capacity reach 200000-250000 CPH
  • High precision,adopt magnetic linear motor
  • Feeding missing component automatically,can save labor and improve product placement quality
  • 68 heads,four modules,each module is 17 heads.



Feeding system



X Y Axis Drive way High-end magnetic linear motor+servo motor
Feeding way Electric feeder with double motor
heads 68 PCS
Feeder station 68 PCS



Component&product

The mahcine mainly mounting linear produce,such as tubes, flexible strips, panel lights, display screens,etc.



Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter 0



Certificate of honor

We have Obtained a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyright



Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter 1



Exhibition information

We also have many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.



Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter 2



Our after-sales service

  • Maintenance period:1 year(during the period,any parts need to be repaired and replaced will be free.)
  • Software are R&D independently and provide upgrade it for free a lifetime
  • We provide free install and training
  • Our company has service offices in Turkey and India,which can provide you with the greatest convenience.



Payment,service



  • The payment method we usually support is T/T
  • The delivery is within 30 days after receiving the deposit!

Transportation

We provide three modes of transportation:sea,land air



Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter 3



SMT line of F9



Pneumatic 250000CPH SMT Pick And Place Machine CCC Led Chip Mounter 4





In case of any further query,feel free to contact us



whatsapp/wechat:008613824337025
