Product Details:
Payment & Shipping Terms:
|
| PCB Length Width: | Max:1200*330mm Min:50*50mm | PCB Thickness: | 0.5~5mm |
|---|---|---|---|
| System: | Window 7 | Total Weight: | 1700 Kg |
| Power Supply: | 380V 50Hz | Applicable Components: | LED Chip/resistor/capacitor/bridge Rectifiers |
| Power: | 6KW | Vision System: | Vision Alignment, Mark Correction |
| High Light: | 250000CPH Pick And Place Machine,LED 3014 Pick And Place Machine,Smt Pick And Place Equipment SIRA |
||

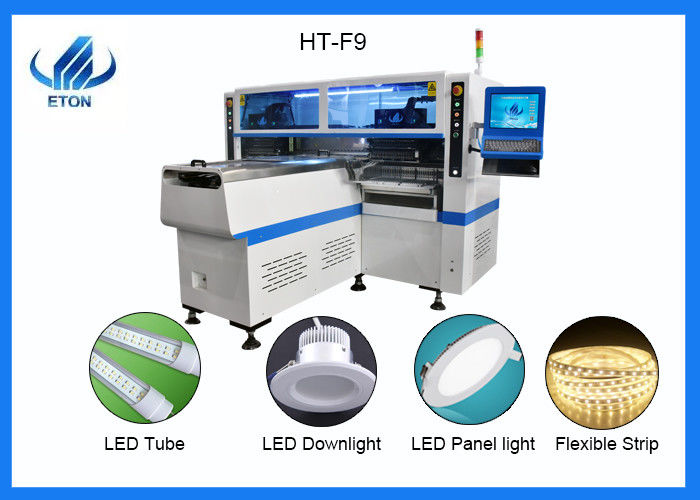

Free install high speed pick and place machine suitable for LED 3014/3020/3528/5050,resistor, capacitor etc
Features:
1.Dual arm four module, can produce 4 types material at the same time. controlled by a computer.
2.It has 68 heads, 68 feeders, the capacity reach 200000CPH ~ 250000CPH. Can save space, labor cost, management cost
3.Two nozzle debugging cameras and two feeder debugging cameras can accurately calibrate the position and spacing of the feeder and the nozzle, and a mark camera can accurately identify the Mark points of the PCB board, and the placement accuracy is higher.
4.Vision system: 5 sets of imported cameras, vision alignment, mark correction.
5.Intelligent production, visual programming can be carried out automatically, programming is simple and convenient, even beginners are convenient and practical.
6.High-end magnetic linear motor and servo motor, very high stability.
7.Dual-motor electronic feeder, stable feeding, faster loading, no need for repeated calibration.
8.Application fields: mass production, R&D and customization, home appliance industry, power drive, LED lighting.
9.Components: LED3014/3020/3528/5050,resistor,capacitor,bridge rectifiers.
10. Mounting product: Suitable for many kinds of product, such as led tube, led panel, 0.6m,0,9m,1m,1.2m flexible strip, display etc.
Technical parameter:
| Model Number | HT-F9 |
| Dimension |
2700*2300*1550mm Total Weight:1700kg
|
| PCB Length width |
MAX:1200*330mm MIN:100*100mm |
| PCB Thickness | 0.5~5mm |
| Mounting Mode | Group to take and group to mount |
| No. of Camera | 5PCS(Digital camera) |
| Mounting Precision | ±0.02mm |
| Mounting Height | ≤5mm |
| Mounting Speed | 200000~250000CPH |
| Components | LED3014/3020/3528/5050 and resistor, capacitor, bridge rectifiers |
| Components Space |
0.5mm |
| Feeders Station | 68PCS |
| No. of Nozzles | 68PCS |
| XY Axis Drive Way | High-end magnetic linear motor + servo motor |
| Feeding way | Electric feeder with double motor |
Application:
Machines details:
About our company:
Shenzhen ETON Automation Equipment Co., Ltd. is a high-tech enterprise with the concept of building a national brand, providing "professional, efficient, and low-consumption" products, focusing on R&D, production and sales of LED automatic high-speed energy-saving placement machines.
With the development trend of greening and energy saving, the rapid development of the LED industry and the requirements for production technology, YITONG and the United States, Taiwan, Hong Kong and many technical personnel, after four years of joint research, successfully developed a fast, stable and perfect ETON LED automatic high-speed energy-saving placement machine series products, with its unique technology, strong production capacity advantages, and perfect after-sales service system, completely subvert the LED placement machine industry field, and solve the problem of low production capacity of long light boards and long light strips. , High labor cost and other problems, and obtained a number of certificates and support issued.
While ETON has made great achievements in the LED field, it has also been committed to technological innovation and development in the SMT field, and has won wide recognition and good reputation in the market. Looking forward to the future, I believe that ETON will definitely achieve better results in the SMT field. , To make greater contributions to the industry and society.
Package:
Vacuum packaging + wooden box packaging
Our service:
1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
2.Chinese engineers provide online services.
3.If necessary, Chinese engineers will come to your factory for free install and training.
4.Besides, India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
5. One-year warranty period, any parts that need to be replaced or repaired during the warranty period are free.
6.Once you buy our machine, you will enjoy free software upgrades for life.
FAQ:
Q1:What is your machines quality?
A: We have our own industrial park. There are production centre, R&D centre and quality inspection centre to guarantee the machines quality.
Q2:Are you a manufacturer or a supplier?
A:We are a manufacturer, we have an industrial park of 50,000 square meters, and have a market share of 80% in the domestic LED market.
Q3:It the machines easy to operate?
A:Machine is very intelligent and easy to operate, usually within 3-5 days you can learn how to use it.
Q4: What payment method do I use?
A:T/T is ok.
