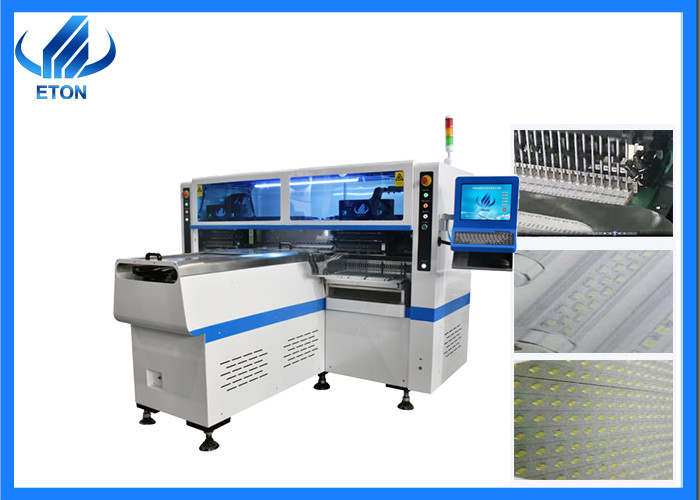

Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness

Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness
Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness

Large Image :  Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-F9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 45000-50000 per unit
Packaging Details: vacuum wooden boxes packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
Size: Max:1200*330 Mm Min:100*100 Mm Thickness: 0.5-5mm
PCB Clamping: Adjustable Pressure Pneumatic No. Of Feeders Station: 68 PCS
No. Nozzles: 68 PCS Length* Width* Height: 2700 Mm*2300 Mm *1550 Mm
High Light:

250000CPH LED Tube Mounting Machine

,

Magnetic Levitation LED Tube Mounting Machine

,

5mm Thickness Pick And Place Machine

Super high-speed magnetic levitation LED tube pick and place machine can be grouped





Details



Capacity reach 200000 to 250000CPH ultra high-speed pick and place machine

68 heads, producing four types materials at the same time

Vision alignment, Mark correction







Feature



High precision The feeding method is dual-motor electronic feeder, independent control is more accurate, and it has automatic compensation function
High speed 2-4 kinds of materials can be mounted at the same time, the speed reaches 200000-250000CPH
Automatic Automatic compensation and automatic positioning for time



Technical parameter



HT-F9 ultra high-speed pick and place machine
Dimension Length* Width* Height 2700mm*2300mm *1550mm
Total weight 1700kg
PCB Size Max:1200*330mm Min:100*100mm
Thickness 0.5-5mm
Clamping Adjustable pressure pneumatic
  Mounting mode Group to take and group to mount
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 5PCS(Digital camera)
  Vision alignment, Mark correction
  Mounting precision +0.02mm( repeat precision)
  Mounting speed 200000-250000CPH
  Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
  No. of feeders station 68PCS
  No. of nozzles 68PCS
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor


Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 0



Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 1



Product



Apply to LED 3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers, etc

Apply to LED tube, panel, flexible strip, linear light, etc.





Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 2






Company information



Shenzhen ETON Automation Equipment Co., LTD, is a leading manufacture of automation high-speed pick and place machine focusing on “ High efficiency Low consumption” in the world.



Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 3



Facrory



There is an industrial park covering an area of 50,000 square meters, equipped with advanced processing and manufacturing centers, and independent production, research, development and testing framework workshops, etc.



Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 4



Certificate



Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 5





Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 6



Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 7



Magnetic Levitation 250000CPH LED Tube Mounting Machine 5mm Thickness 8



FAQ



Do you have any customers in India? How many machines are there in India?

Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.

Can I visit the production site of your machines in India?

I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.

Does the price include the spare parts(feeder and nozzle)?

Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.

What is your machines quality?

We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
