Product Details:
Payment & Shipping Terms:
|
| Weight: | 1700 Kg | No. Of Camera: | 5 PCS(Digital Camera) |
|---|---|---|---|
| Mounting Speed: | 200000-250000CPH | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| No. Of Nozzles: | 68PCS | Feeding Way: | Electric Feeder With Double Motor |
| High Light: | 250000CPH Pick And Place Machine,SIRA Pick And Place Machine,Magnetic Linear Motor Chip Mounting Machine |
||

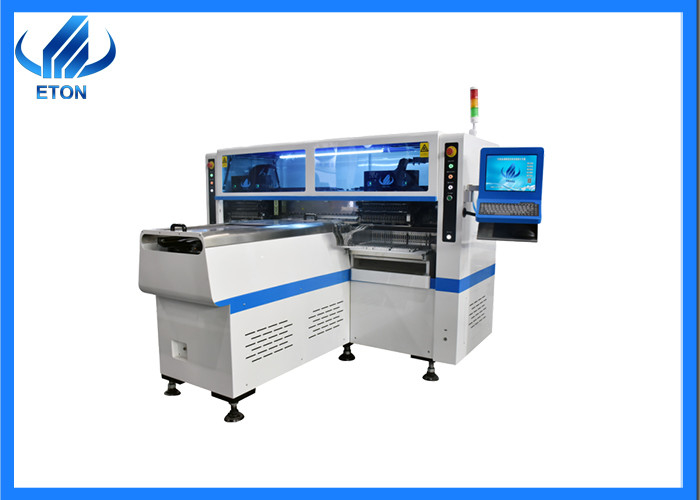

Can group mount with double stick head ultra-high speed LED lamp pick and place machine
Details
Capacity reach 200000 to 250000CPH ultra high-speed pick and place machine
68 heads, producing four types materials at the same time
Vision alignment, Mark correction
Features
| Exclusive | Exclusive patent: group to take and group to mount |
| Intelligent | Automatic optimization function and non-stop automatic refueling function |
| High efficiency | 68 heads, dual arm four module, Can produce 4 different materials at the same time |
Technical parameter
| HT-F9 ultra high-speed pick and place machine | ||
| Dimension | Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg | |
| PCB | Size | Max:1200*330mm Min:100*100mm |
| Thickness | 0.5-5mm | |
| Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 5PCS(Digital camera) |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.02mm( repeat precision) | |
| Mounting speed | 200000-250000CPH | |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc | |
| No. of feeders station | 68PCS | |
| No. of nozzles | 68PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor |
|
Product
Apply to LED 3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers, etc
Apply to LED tube, panel, flexible strip, linear light, etc.
Production line
Company information
Shenzhen ETON Automation Equipment Co., LTD, is a leading manufacture of automation high-speed pick and place machine focusing on “ High efficiency Low consumption” in the world, meanwhile ETON is also the largest high-tech manufacturer in China with strong capacity of design, R&D, manufacturing, sales& service.
Factory
There is an industrial park covering an area of 50,000 square meters, equipped with advanced processing and manufacturing centers, and independent production, research, development and testing framework workshops, etc.
FAQ
Do you have any customers in India? How many machines are there in India?
Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
Can I visit the production site of your machines in India?
I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
What is your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
