Product Details:
Payment & Shipping Terms:
|
| Max PCB Size: | 1200*330mm | Min PCB Size: | 50*50mm |
|---|---|---|---|
| Drive Way: | High-end Magnetic Linear Motor+servo Motor | Length*Width*Height: | 2700*2450*1530mm |
| System: | Windows 7 | Speed: | 150000-170000CPH |
| High Light: | 170000CPH Pick And Place Machine,50x50mm PCB Pick And Place Machine,Two Mounting Modules Smt Placement Machine |
||
Two mounting modules automatic pick and place machine hot selling led light making equipment

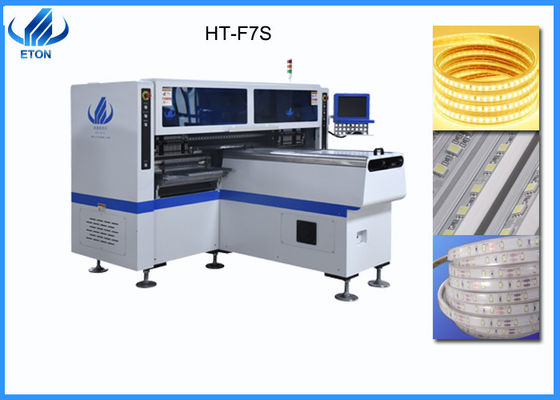

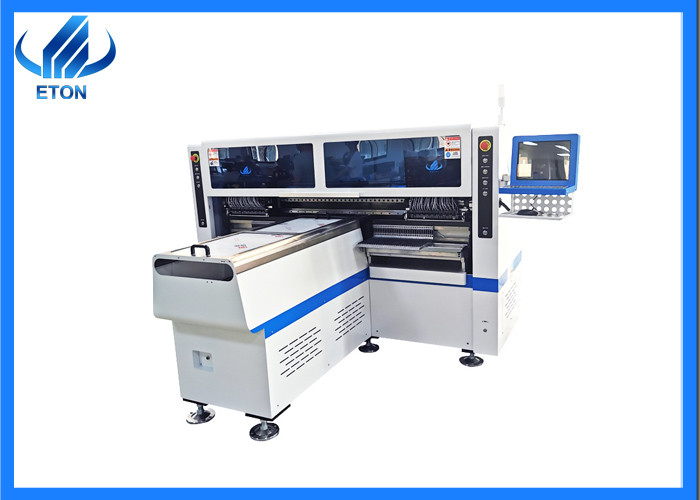

Introducing machine F7S
The machine is dual-purpose professional high-speed mounter,2-4 types of capacity reach 170000 CPH
Feature of machine
Machine Parameter
| Dimension | 2700*2450*1530mm | |
| Total weight | 1400kg | |
| PCB | size |
Max:1200*330mm Min:50*50mm |
| Thickness | 0.5-5mm | |
| Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separate placing,separate picking and separate placing. | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Input device | Keyboard,mouse | |
| Vision system | camera | 5 PCS digital camera |
| Mounting precision | ±0.02mm | |
| Mounting element height | ≤5mm | |
| Mounting speed | 150000-170000 CPH | |
| Components | LED3014/3020/3528/5050 and capacitor,resistors,bridge rectifiers,etc. | |
| Components space | 0.2mm | |
| Feeder station | 68 PCS | |
| Nozzles | 34 PCS | |
Machine details
|
High capacity
|
|
|
High precision
|
|
|
Power functions
|
|
|
Operation&maintenance
|
|
Components&products
Company profile
Our company is a leading manufacturer of automatic high-speed pick and place machine focusing on High efficiency Low consumption.ETON with more than 10 years experience in SMT machine field.And we have rated many awed,like Shenzhen high-tech enterprise,China high-tech enterprise,Industry Special Contribution Aware,etc.
Our industrial park
The factory belonging to our company has been successfully built, there is 50000 SQM,equipped with advanced processing and manufacturing centers, scientific research buildings, exhibition halls, etc., to ensure quality from the source and further standardize production processes.
Our service
Introducing Machine details
Transportation& Package
By sea
The advantages of sea transportation are convenience, cheapness, and strong carrying capacity
By railway
The advantages of shipping are economical and affordable, with large transportation capacity, which is more suitable for inland countries.
By air
The advantage of air transportation is that it is convenient and fast, which is more suitable for urgent items.
We use vacuum wooden box packaging
Why choose us?
FAQ:
If I have no experience,The machine is easy to use?
Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.
How is the breakdown rate of machine?
Our machine is very stable,the breakdown rate is less than 0.001;.
Is your software interface in English?
English interface and Chinese interface are both available.
Why your price is so high?
Because the quality, accuracy and performance of our machines are relatively good,different but better.
