Product Details:
Payment & Shipping Terms:
|
Quality: | 100% Test | Warranty: | 1 Year |
---|---|---|---|

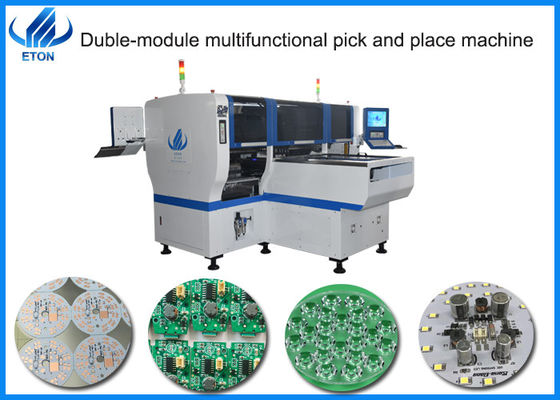

Types: | Dual Module Multi-functional Mounter | Total Weight: | 2500kg |
Mounting Speed: | 90000CPH | Nozzles: | 24 PCS |
High Light: | 0402 Components Pick And Place Machine,90000CPH Pick And Place Machine,SIRA Led Lighting Making Machine |

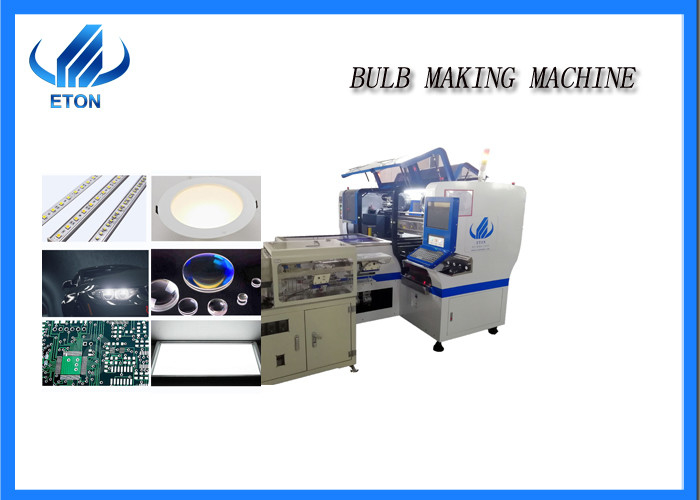

ETON major product
Product description
►The pasting speed is 90000 CPH, 48 feeders station and 24 nozzles. And It can produce two different products at the same time, which greatly improves the efficiency.
►Minimum placement of 0402 components, maximum placement of 15mm
►Mounting components about LED,capacitor,resistor,shaped components,etc
Product presentation
►High Precision: four sets cameras are equipped with visual alignment, mark correction technology and optical positioning technology to accurately identify the position of PCB board and quickly and accurately mount components.
►High speed: group picking and separate placing,separate picking and separate placing,the capacity is 90000 CPH,48 PCS feeder stations double module,24 nozzles double module
►Strong durability: The quality of hardware equipment is guaranteed by certificate, the quality of dual motor electronic flying and guide rail and screw is guaranteed, which can support 24-hour operation.
Simple operation: Windows 7 system can be used to switch the Chinese-English interface, usually 3 to 5 days training of operation is enough.
Technical parameter | ||
Length | 3150mm | |
Width | 2250mm | |
Height | 1650mm | |
Total weight | 2500kg | |
PCB | Length width |
Max:1200*300mm Min:100*100mm |
Thickness | 0.5-5mm | |
Clamping | Adjustable pressure pneumatic | |
Mounting mode | Group picking and separate placing,separate picking and separate placing. | |
Mounting speed | 90000CPH | |
Mounting precision | ±0.04 | |
Components Space | 0.2mm | |
Power | 380AC 50Hz | |
Feeder station | 48 PCS | |
Nozzles | 24 PCS | |
No.of camera | 4 sets | |
Vision for the flight identification,Mark correction |

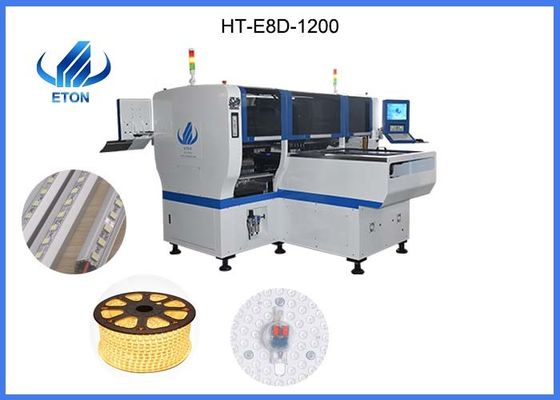

Feature of machine E8D-1200
Company Information
✬Our company is a leading manufacturer of automatic high speed pick and place machine focusing on High efficiency Low consumption,and is a famous high-tech automatic manufacturer in China.
✬We have our own industrial park,there are production center and R&D center and quality inspection centre to guarantee the machine quality.
✬Also,we have exported machine to different countries,such as India,Egypt,Korea,Turkey,Brazil etc.and enjoy good reputation on the market.
✬Our company will go to many exhibitions, such as the domestic Shanghai Munich exhibition, and foreign India Delhi exhibition, India Mumbai exhibition, Pakistan exhibition, Turkey exhibition, Thailand exhibition and so on.
Payment
The machine is relatively large,we suggest pay it by T/T,safe and convenient.
Package&shipping
In general,each machine is firstly covered with protective,then added vacuum packaging and finally put in carton.
As for shipment,we have flexible delivery: Ocean Delivery,Air Delivery and land Delivery.
FAQ:
What are the main LED products o our machines for?
There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
Do our machines only for LED lights?
No,our machines apply to not only LED light but also other products.
What components do our machines apply to?
Our machines can patch LED 3014/30202/2835/5050/5630/5730 etc.. capacitors, resistors,IC.shaped components and so on.
Why do we adopt the smart electronic feeders?
Our machines adopt the smart electronic feeders which are more stable.universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cost and drop of materials effectively.
