Introducing brand
- Our company ETON is set up in 2011, professional manufacturing of placement machines for 10 years,is the leading manufacturer of high-speed pick and place machine in China, the top brand company with CCC, CE, SIRA, ISO.
- Our company has an industrial park equipped with advanced processing and manufacturing centers.
Company quality principle
- Company five level management policy:sincere business,focus on R&D,manufacturing intentions,considerate service,customer trust
- ETON mission:professional,excellent technology,sharing the results
- ETON goal:to create a national brand,build international Chinese enterprises
- ETON’s purpose:to create value for customers,creating benefits for society
- ETON vision:determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.

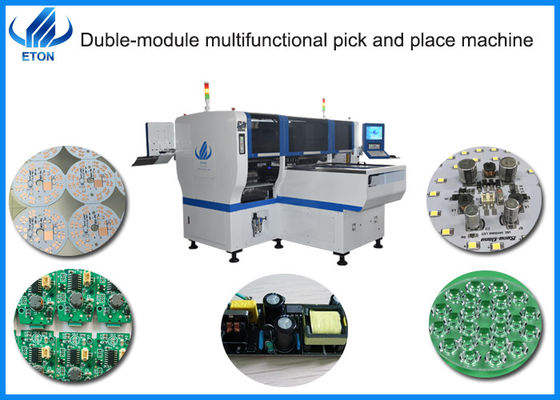

Multifunctional pick and place machine E8D-1200

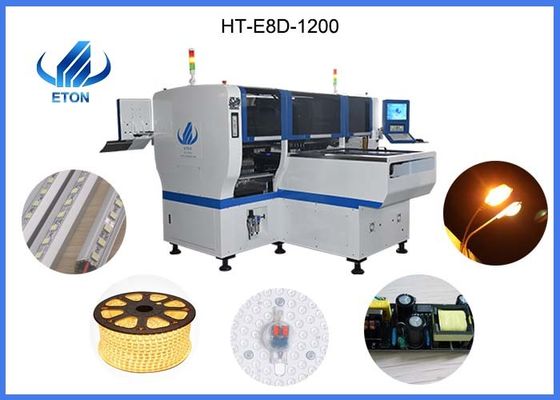

✹The machine HT-E8D-1200 with double module,total 24 head,each part 12 heads,can produce two types of product at the same time.
✹The X axis is magnetic linear motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
✹It’s intelligent,can product different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power light
✹Its high precision,apply to LED chips,resistor,capacitor,IC,shaped component etc.
✹It is highspeed machine,the optimum speed is 90000 CPH.
Technical parameter
| Dimension |
2550*1650*1550mm |
| weight |
1700kg |
| PCB size |
Max: 1200*300mm
Min: 100*100mm
|
| No.of camera |
24 sets of imported camera |
| Mounting height |
<15mm |
| Component |
LED,capacitor,resistor,shaped component,etc. |
| Power consumption |
8 KW |
| Optimum speed |
90000CPH |
| Feeder station |
48 PCS |

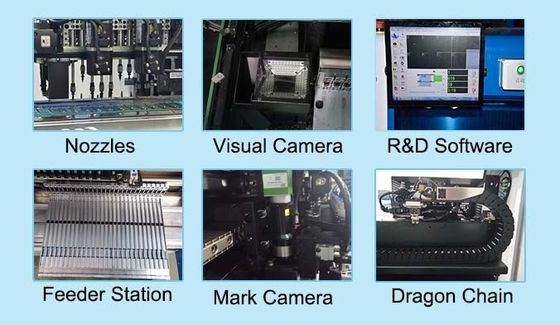

| Nozzles |
24 PCS |
| X Y Z axis drive way |
High-end magnetic linear motor and servo motor |
| Mounting mode |
Group picking and separate placing,separat picking and separate placing |
| Mounting Space |
0.2mm |
| Mounting Precision |
±0.04mm |
| Feeding way |
Electric feeder with double motor |
Operate system
Machine is very intelligent and easy to operate,like the intelligent phone,also the software is made by our company,more intelligent and operate.
| System |
Windows 7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Input device |
Keyboard, Mouse |

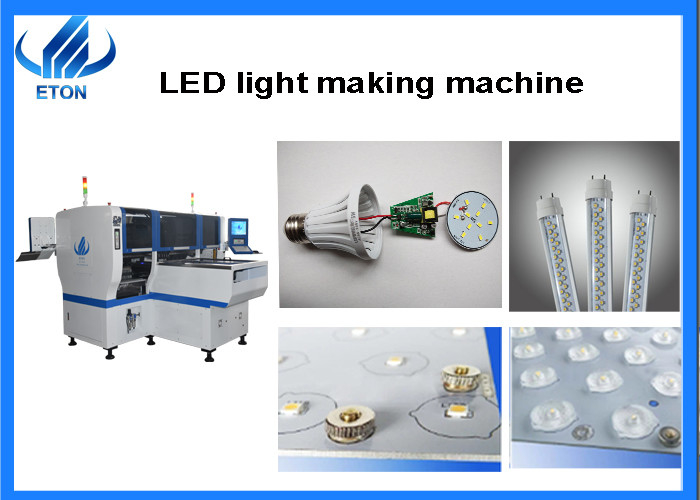

Machine application
The machine E8D-1200 can product different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power light.
About our industrial park
- We have our own industrial park,50000 SMQ, Equipped with the most advanced processing and manufacturing center, quality is checked from the source, and the production process is further standardized and streamlined.
- there are production center and R&D center and quality inspection centre to guarantee the machine quality.
SMT line
In the SMT line, a SMT production line is composed of different machines
- First,Stencil printer
- Second,pick and place machine
- Third,Reflow oven and Conveyor,etc
Payment&delivery&shipping
- The payment method we usually support is T/T
- The delivery is within 30 days after receiving the deposit!
After sales service
- Maintenance period:1 year(during the period,any parts need to be repaired and replaced will be free.)
- Software are R&D independently and provide upgrade it for free a lifetime
- We provide free install and training
- Our company has service offices in Turkey and India,which can provide you with the greatest convenience.
