Led lighting board Smt Production Line reflow oven printer mounting machine 45000cph For Electrical Board

Led lighting board Smt Production Line reflow oven  printer mounting machine 45000cph For Electrical Board
Led lighting board Smt Production Line reflow oven  printer mounting machine 45000cph For Electrical Board

Large Image :  Led lighting board Smt Production Line reflow oven printer mounting machine 45000cph For Electrical Board

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-E8S

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Wooden package
Payment Terms: D/A
Supply Ability: 50 sets
Detailed Product Description
Name: Semiautomatic Production Line Brand: ETON
Warranty: 1 Year Package: Wooden
Capacity: 45000cph Service: Free
High Light:

Electrical Board Smt Production Line

,

Positioning Pin Smt Production Line

,

45000cph Smt Pick And Place Equipment

Semiautomatic SMT Line



Features of semiautomatic line

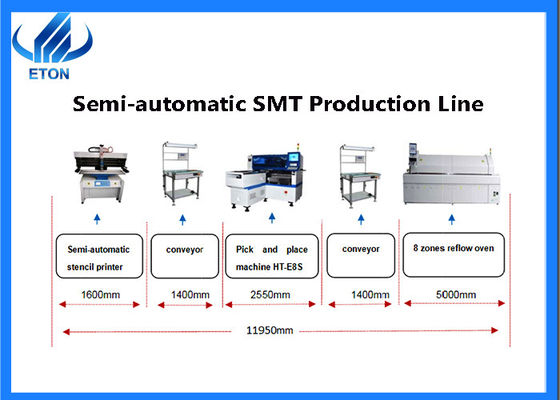

  1. Semi-automatic production line is mainly composed of semi-automatic printing machine, placement machine and reflow soldering machine.
  2. The semi-automatic line saves the purchase cost of the machine and is more economical and practical
  3. The semi-automatic production line is more flexible and can meet the different production needs of customers
  4. The theoretical capacity of the semi-automatic production line is the same as that of the fully automatic printing machine



Application of semi-automatic production line

The semi-automatic production line is suitable for products that do not require high product placement accuracy, such as various LED lights, outdoor displays, simple drives and other products

Led lighting board Smt Production Line reflow oven  printer mounting machine 45000cph For Electrical Board 0

Machine Parameters

Item 1: Semiautomatic stencil printer machine

Printing area: 1200*250 mm

Plate area: 1250*300 mm

Stencil frame size: 470*370 mm-1300*550 mm (L*W)

Positioning way: Positioning pin

Power:220V single phase, 50/60 HZ



Item 2: Automatic pick and place machine

Dimension: 2550*1650*1550 mm

PCB length Width :Max 1200*500 mm

PCB clamping: Adjustable pressure pneumatic

Mounting Mode: Group picking and separate placing, separate picking and separate placing

Mounting speed: 45000 CPH

Mounting Height :12 pcs



Item3: Six zones reflow oven machine

Number of heating zones: up 6/ bottom 6

Number of cooling zones: 1

Length of heating zones: 2500 mm

Heating mode: Hot air

Cooling mode: Force air

Max Width of PCB:350 mm

Mesh belt width : 400 mm

Led lighting board Smt Production Line reflow oven  printer mounting machine 45000cph For Electrical Board 1
