| Dimension: | 1200*1930*1500 Mm | Total Weight: | 2200 Kg |
|---|---|---|---|
| Mounting Speed: | 30000~35000CPH | Vision System: | Vision Alignment, Mark Correction |
| PCB Length Width: | Max:400*350 Mm Min:50*50 Mm | Warranty: | 1 Year |
| Packing: | Vacuum Packaging + Wooden Box Packaging | Mode Of Transport: | Sea/ Rail/airplane |
| High Light: | LED Bulb SMD Mounting Machine,SIRA SMD Mounting Machine,35000CPH LED Chips Placement Machine |
||

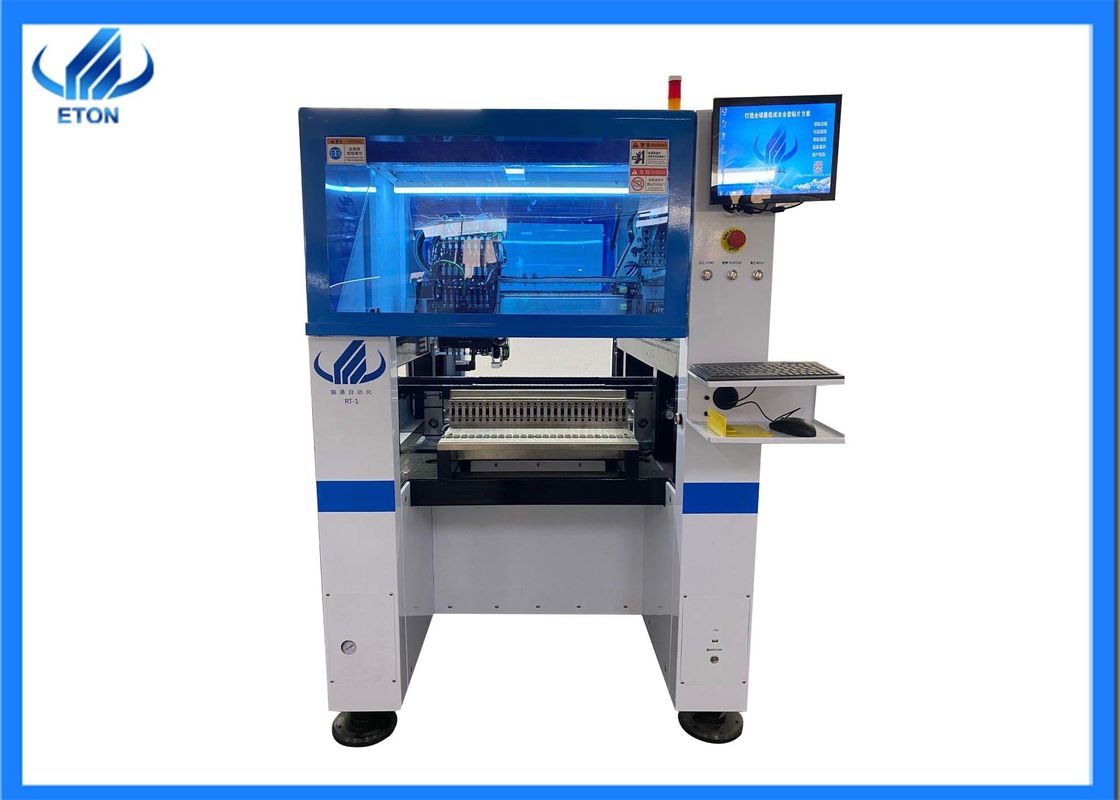

LED Bulb Factory direct supply 10 heads SMD pick and place machine LED chips placement machine
What is SMT Production Process?
Step 1:Solder paste Printing
Operate the stencil printer to print the solder pastes onto the PCB
Step 2:Mounting Part
The PCB board that has been brushed with solder paste will be sent to the pick and place machine for automatic mounting,
and the pick and place machine will automatically pick components and place on PCB.
Step 3 : Reflow Soldering
The PCB board be mounted with components is sent to reflow oven, reflow oven will heat and welding the components with
solder paste on PCB.
Step 4 : Testing
Check whether the PCBA is misaligned or shift.
Features:
1. High-precision industrial cameras solve the problem of precise placement of precision chips such as IC, QFN and other small chips. Place a minimum of 0402 chips.
2. Type: Single-module magnetic linear motor multi-function pick and place machine
3. Adopt imported custom suction nozzle, suck, not easy to lose parts when put, easy to install, durable. Suitable for mounting various special-shaped components.
3. It is equipped with 10 placement heads and 32 feeding stations, can absorb 10 different materials at the same time, and has an automatic replenishment function.
4. The placement accuracy has reached ±0.04mm, which is suitable for placement of high-precision PCB boards.
5. Double-motor electronic feeder, stable feeding, fast feeding speed, no need to repeat calibration.
6. Mounting PCB board size: 400*350mm, the highest can mount components less than 22mm, the smallest can mount 0402 components
7. Mounted products: LED bulb/DOB/driver/power supply/circuit board/home appliance control board/panel light/downlight/and other small PCB board products.
8. Capacity: 30000~35000CPH
|
|
RT-1 |
|
L*W*H |
1200*1930*1500mm
Total Weight:2200kg |
| PCB Length Width |
MAX:400*350mm MIN:50*50mm |
| Mounting Mode | Group picking and separate placing,separate picking and separate placing |
| Mounting height | ≦22mm |
| No. of Camera | 2PCS |
| Mounting Precision | ±0.04mm |
| Mounting Speed | 30000~35000CPH |
| Components Space | 0.2mm |
| Feeders Station | 32PCS |
| No. of nozzles | 10PCS |
After service:
1. Warranty period: one year, any parts that need to be repaired and replaced during the warranty period are free.
2. Service station: India office and Indian engineers can provide you with services faster.
3. After-sales service: Send engineers to your factory for free installation and training.
4. Shipment: Shipment within 30 days after payment.
5. Transportation methods: sea transportation, road transportation, air transportation, etc.
6. Software updates: Enjoy free software updates for life.
