Use the optical positioning factory to directly supply the multi-function LED drive pick and place machine
Features
Adopt high-end magnetic levitation motor and servo motor
Using dual-motor electronic feeder feeding system, placement is more accurate
The mounting method is: it can be grouped and divided and can be divided and divided, and it can be mounted to produce a variety of products
Mounted parts can be mounted with a minimum of 0402 and a maximum of 17 mm
Speed up to 60000-70000CPH
Technical parameter

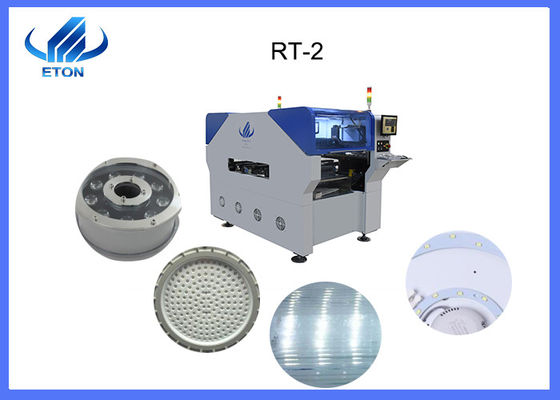

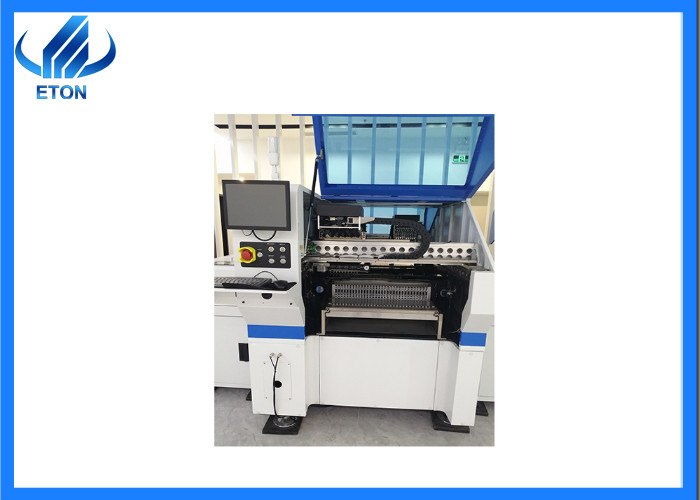

| RT-2 pick and place machine |
| Dimension |
Length* Width* Height |
1195mm*1930mm*1500mm |
| Total weight |
2500kg |
| PCB |
PCB Size |
Max:400*300mm Min:50*50mm |
| PCB Thickness |
0.1-6mm (Fixtures required for less than 0.6mm) |
| PCB Clamping |
Electric clamping |
| |
Mounting mode |
Group picking and separate placing, separate picking and separate placing |
| Vision System |
No. of camera |
4 PCS |
| |
Vision alignment, Mark correction |
| |
Mounting precision |
+0.04mm |
| |
Mounting speed |
60000-70000CPH |
| |
Components |
LED, capacitors, resistors, IC, shaped components, etc. |
| |
No. of feeders station |
64PCS |
| |
No. of nozzles |
20PCS |
| |
XYZ Axis drive way |
High-end magnetic linear motor + servo motor |
| |
Feeding way |
Electric feeder with double motor |
Company information
Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. which specializes in SMT high-speed pick and place machine about ten years, and obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, etc
Certificate
Delivery
By air: Small parts packaging
By sea: Pack and ship large and heavy machines
By railway: According to customer requirements
FAQ
Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Does your machines have quality certificates?
