Product Details:
Payment & Shipping Terms:
|
| Mounting Precision: | +0.04mm | PCB Clamping: | Electric Clamping |
|---|---|---|---|
| PCB Thickness: | 0.1-6mm | Mounting Speed: | 60000-70000CPH |
| No. Of Nozzles: | 20PCS | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| High Light: | Electric Clamping SMT Production Line,Multi Functional SMT Production Line,Group Picking SMD Placement Machine |
||

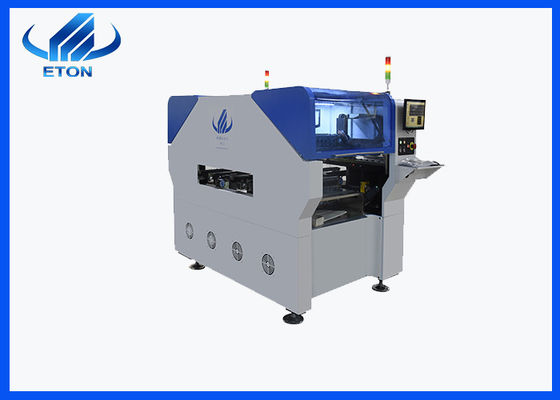

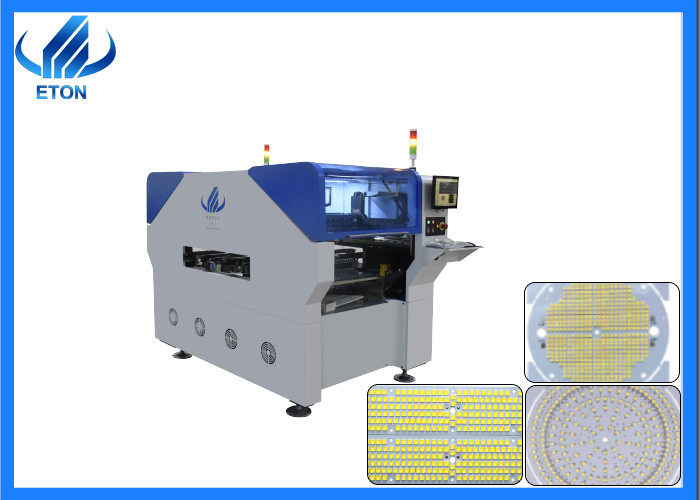

High efficiency multi-functional SMT production line SMD machine placement machine
Features
It can be mounted up to 22mm, suitable for mounting special-shaped components.
The maximum size of the PCB board is 400*300 mm, and small board products can be mounted.
With automatic compensation, the camera uses a flight recognition camera and a mark camera, both of which are working in production.
The software is independently researched and developed by us, and has an exclusive patent. Customers who purchase our machines can enjoy free lifetime software upgrades.
Technical parameter
| RT-2 pick and place machine | ||
| Dimension | Length* Width* Height | 1195mm*1930mm*1500mm |
| Total weight | 2500kg | |
| PCB | PCB Size | Max:400*300mm Min:50*50mm |
| PCB Thickness | 0.1-6mm (Fixtures required for less than 0.6mm) | |
| PCB Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| Vision System | No. of camera | 4 PCS |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 60000-70000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 64PCS | |
| No. of nozzles | 20PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Certificate
Delivery
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
services
Warranty period: one year
Provide latest information about technology and equipment, free software upgrade
24 hours online service and technical support, solve your problem rapidly
Design and provide the entire production line for you according to your needs
FAQ
Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
