Product Details:
Payment & Shipping Terms:
|
| Length* Width* Height: | 1200mm*1930mm*1500mm | Mounting Speed: | 30000-35000CPH |
|---|---|---|---|
| No. Of Feeders Station: | 32PCS | XYZ Axis Drive Way: | High-end Magnetic Linear Motor + Servo Motor |
| PCB Clamping: | Electric Clamping | Display: | Touch Screen Monitor |
| High Light: | Servo Driven SMT Placement Machine,Touch Screen Monitor SMT Placement Machine,35000CPH Pick And Place Equipment |
||

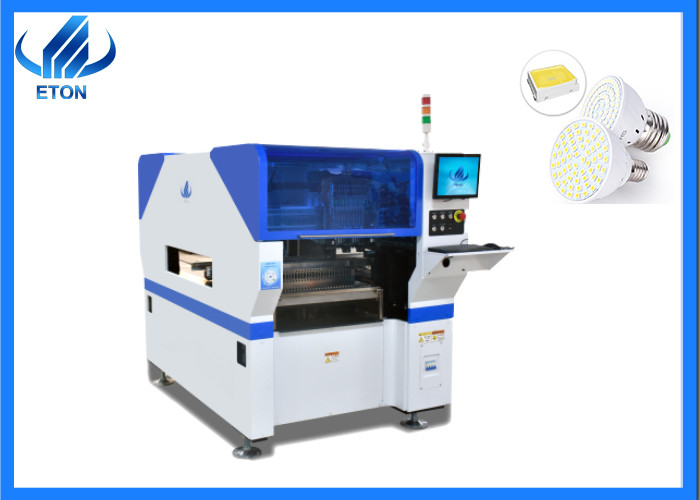

It can be used to easily control the self-developed servo-driven placement machine
Product
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.(max: 17mm, min: 0402)
Application: led bulb, panel, display, DOB, drive, down light, ceiling light, street light, etc
Future
XYZ axis drive way is high-end magnetic linear motor and servo motor; Use a flight identification camera to capture head movements during production, compare programs, and compensate for components.
Is group picking and separate placing, separate picking and separate placing, it can be applied to the production of a variety of products
Use electronic feeder feeding system, have auto-optimization. The speed reaches 30000-35000 CPH.
Technical parameter

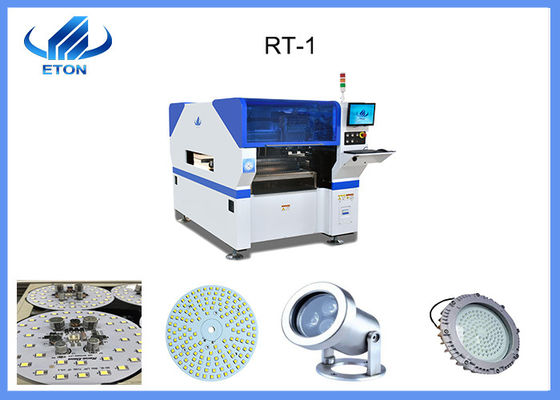

| RT-1 pick and place machine | ||
| Dimension | Length* Width* Height | 1200mm*1930mm*1500mm |
| Total weight | 2200kg | |
| PCB | PCB Size | Max:400*350mm Min:50*50mm |
| PCB Thickness | 0.1-6mm | |
| PCB Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 2 PCS |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 30000-35000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 32PCS | |
| No. of nozzles | 10PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Shenzhen ETON Automation Equipment Co., LTD be located in the beautiful coastal city of Shenzhen, China. Which is the national high and new technology enterprise. And specialize in SMT high-speed pick and place machine with ten years. Developed a variety of intellectual property technologies, such as invention patents, practical patents, software copyrights, etc
Certificate
Packaging and payment
Packaging : vacuum wooden boxes packaging
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
After sales service
Warranty period: one year
Provide latest information about technology and equipment
Free software upgrade
FAQ
The transmission direction of this machine is both direction
Yes, the electrical control is by ourselves and have exclusive patent technology.
We will deliver the goods after 30 days' deposit.
manufacturer. We have our own industrial park.
