Place Of Origin: | Guangdong, China | PCB Length Width: | 250mm*any Length |
---|---|---|---|
PCB Thickness: | 0.5~1.5mm | Software: | R&D Independently |
Display: | Touch Screen Monitor | Warranty Period: | 1 Year |
Power Supply: | 380V 50Hz | Applicable Components: | Long Soft Strip Lamp |
High Light: | PCB Clamping Pick And Place Machine,Flexible Strip Pick And Place Machine,68 Heads Smt Placement Machine |
Dual arm dual motor 68 heads high speed pick and place for 5M/50M/100M flexible strip(no wire)

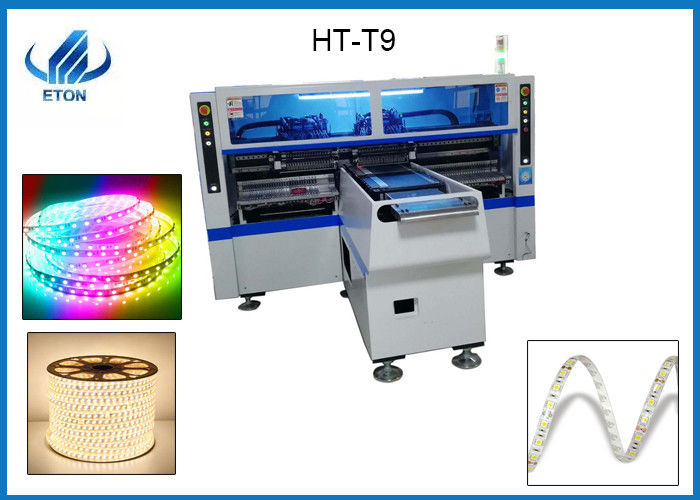

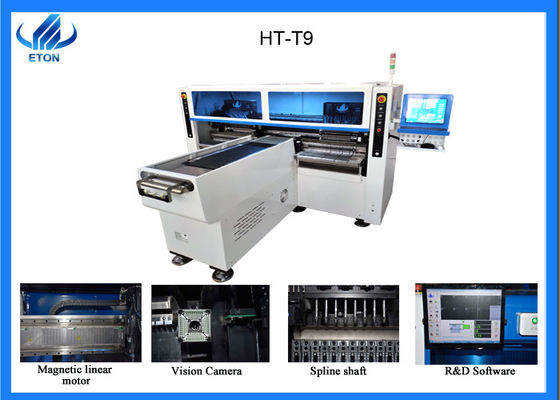

200K CPH Roll to Roll Soft Strip Light Pick and Place Machine HT-T9
1.Features:
1.Super high-speed placement machine, double-arm four modules, can produce four types of materials at the same time, each installation part (A part or B part) 17 nozzles can be installed separately or simultaneously. And with high production capacity, it can be used for 5M, 50M or any length of flexible strip roll-to-roll.
2.Machine function: Pick up components and automatically install them on the PCB.
3.Intelligent PCB clamping mode: vacuum suction, cylinder clamping plate, adjustable wiring width.
4.Exclusive patented technology: group picking and group posting
Automatic optimization after coordinate generation
Automatic feeding function
5.High precision: Mark correction function, automatic calibration, suitable for RGB.
6.The easy-to-operate program is more convenient, and the automatic vision makes the position fix more accurate and convenient.
2.Technical parameter:
L*W*H |
3100*2300*1550mm Total weight: 1700kg |
PCB Length width |
250mm*any length
|
PCB Thickness | 0.5~1.5mm |
Mounting Mode | Group to take and group to mount |
No. of Camera | 5PCS(Digital camera) |
Vision System | Vision alignment, Mark correction |
Mounting Precision | ±0.02mm |
Mounting Height | ≦5mm |
Mounting Speed | 200000~250000CPH |
Components | LED3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers |
Components Space | 0.5mm |
Feeders Station | 68PCS |
No. of Nozzles | 68PCS |
Electrical control | Independent research and development by ETON |
Motion control card module 1 set | Independent research and development by ETON |
3.Mounted products:
Suitable for mounting 5m, 50m, 100m or any length of flexible light strips, roll-to-roll.
4.After-sales service:
1.As the largest high-speed pick-and-place machine in China, ETON is not only known for its high quality, but also for its excellent service. ETON has offices in Shenzhen, Shanghai, Zhongshan, Delhi, Turkey, Egypt and other cities.
2.If you buy our machine, we will provide you with free installation and training, and will send engineers to your factory for installation and training.
3.One year warranty. During the warranty period, all parts that need to be repaired and replaced are free of charge.
4.Free upgrade software, the software is developed by ETON, so we support lifetime free upgrades.
5.Visit customers regularly. Every year we will participate in different exhibitions in different cities. At the same time, we will visit local customers and support our services, and collect and feedback customer suggestions in time.
6.At the same time, our Chinese engineers will also provide customers with professional technical advice.
5.Introduction to our company:
6.Our client:
In the market, around 80% of large LED factory are our client. We have exported machine to different countries, such as India, Egypt, Korea, Turkey, Brazil etc. Such as FSL,ETI,KONKA,OPPLE,MLS are our client, In India such as RK, Surya, skyquad are our client.
7. FAQ:
If you have other questions you want to know, you can contact me through the contact information.
