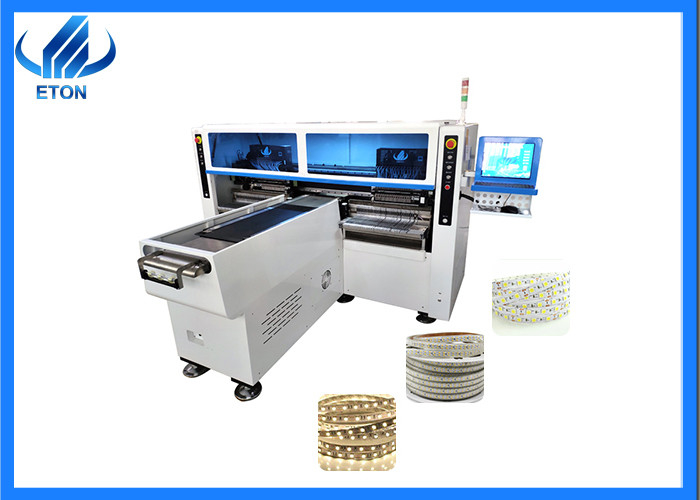

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH
High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

Large Image :  High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-T9
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Detailed Product Description
PCB Thickness: 0.5-1.5mm Mounting Mode: Group To Take And Group To Mount
No. Of Camera: 5PCS(Digital Camera) Mounting Precision: +0.02mm( Repeat Precision)
Mounting Speed: 200000-250000CPH No. Of Nozzles: 68PCS
High Light:

High Speed Wireless Pick And Place Machine

,

Pick And Place Machine 1.5mm PCB

,

50000CPH Smt Assembly Machine

Good quality, good service, ultra-high-speed wireless pick and place machine





Product description



Vision alignment, Mark correction

Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc

Application: flexible strip( any length)



Features



Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously. The capacity reach 250000CPH

Producing 4 types materials at the same time with high capacity, available for 5 M,50 M or any length of flexible strip and roll to roll.

With a new visual recognition system, five imported cameras, visual alignment, Mark correction technology, it can be automatically corrected, available for RGB

Exclusive patent technology:group to take and group to mount







Technical parameter



HT-T9 pick and place machine
Dimension Length* Width* Height 3100mm*2300mm *1550mm
Total weight 1700kg
PCB PCB Size 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Vacuum adsorption, cylinder splint, adjustable track width
  Mounting mode Group to take and group to mount
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 5PCS(Digital camera)
  Vision alignment, Mark correction
  Mounting precision +0.02mm( repeat precision)
  Mounting speed 200000-250000CPH
  Components LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc
  No. of feeders station 68PCS
  No. of nozzles 68PCS
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor





High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH 0





Company information



Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.



High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH 1



High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH 2

Certificate



High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH 3

Packaging and payment



vacuum wooden boxes packing

Terms of payment: 30% depositing on the date of signing contract,70% payment before deliver



High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH 4



After sales service



Warranty period: one year

Provide latest information about technology and equipment

Free software upgrade



FAQ



Q:What is the delivery date?

We will deliver the goods after 30 days' deposit.

Q:Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

Q:Are you a manufacturer or trading company?

manufacturer. We have our own industrial park.



High Speed Wireless Pick And Place Machine 1.5mm PCB 50000CPH 5
