Wire-free super high-speed pick and place machine that can paste 4 kinds of materials
Product description
Dual arm four module high speed pick and place machine, capacity reach 250000CPH
Vision alignment, Mark correction
Components: LED 3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc

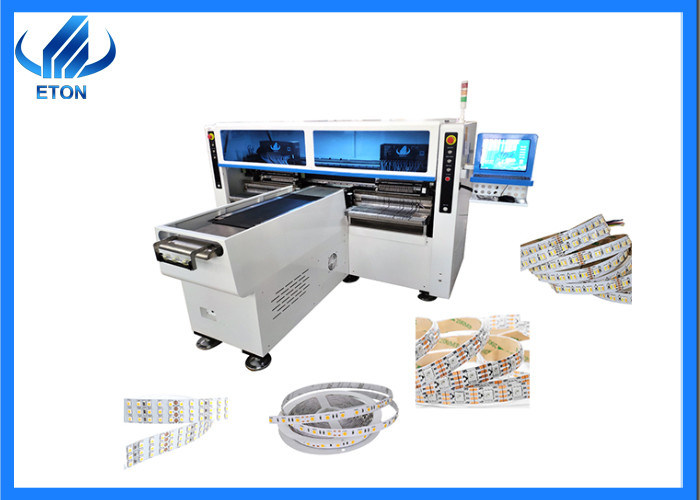

Application: flexible strip( any length)
Technical parameter

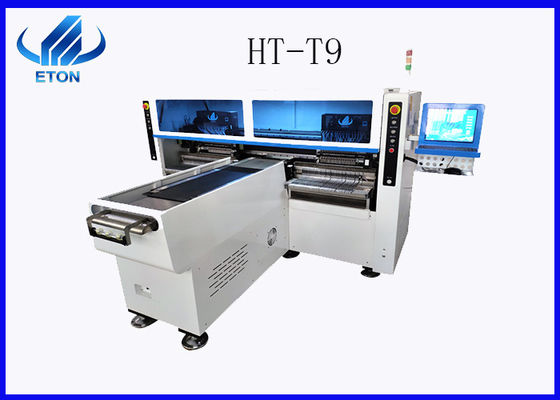

| HT-T9 pick and place machine |
| Dimension |
Length* Width* Height |
3100mm*2300mm *1550mm |
| Total weight |
1700kg |
| PCB |
PCB Size |
250mm*any length |
| PCB Thickness |
0.5-1.5mm |
| PCB Clamping |
Vacuum adsorption, cylinder splint, adjustable track width |
| |
Mounting mode |
Group to take and group to mount |
| O.S. |
System |
Windows 7 |
| Software |
R&D independently |
| Display |
Touch screen monitor |
| Vision System |
No. of camera |
5PCS(Digital camera) |
| |
Vision alignment, Mark correction |
| |
Mounting precision |
+0.02mm( repeat precision) |
| |
Mounting speed |
200000-250000CPH |
| |
Components |
LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc |
| |
No. of feeders station |
68PCS |
| |
No. of nozzles |
68PCS |
| |
XYZ Axis drive way |
High-end magnetic linear motor + servo motor |
| |
Feeding way |
Electric feeder with double motor |
Company information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2019 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.
Certificate
Our company's machines rely on independent research and development, including 9 invention patents, 112 utility patents, 12 software copyrights, etc.
Packaging and payment
vacuum wooden boxes packing
Terms of payment: 30% depositing on the date of signing contract,70% payment before deliver
FAQ
Q:What is the delivery date?
We will deliver the goods after 30 days' deposit.
Q:Is electrical control developed independently?
Yes, the electrical control is by ourselves and have exclusive patent technology.
Q:Are you a manufacturer or trading company?
Manufacturer. We have our own industrial park.
