Product Details:
Payment & Shipping Terms:
|
System: | Window 7 | Software: | R&D Independently |
---|---|---|---|
Display: | Touch Screen Monitor | Input Device: | Keyboard,Mouse |
Operation Interface: | Chinese And English Interface | Recognition System: | Vision Alignment Flight Identification, Mark Correction |
Feeding Way: | Electric Feeder With Double Motor | Warranty: | 1 Year |
High Light: | 45000CPH SMD Manufacturing Line Machine,4KW SMD Manufacturing Line Machine,12 Nozzles LED Bulb Assembly Machine |
LED Light Making Machine LED Bulb Assembly Machine SMD Manufacturing Line Machine with Factory Price
Product details
Features
1. Single-module magnetic linear motor multi-function pick and place machine.
2. Precision mounting head system:
12 nozzles, group picking and separate placing, separate pick and separate placing, can meet the installation requirements of different components.
Each placement head is independently controlled by an independent servo motor to ensure that the machine can pick and place more accurately at higher speeds.
3. Installation components: LED, capacitors, resistors, special-shaped components.
4. Component size: minimum size: 0402. Maximum height: 15mm.
5. Application: power driver, circuit board, lens, linear bulb, household appliances, LED tube/bulb/panel/display/down-light/lens/ceiling lamp, etc.
6. Mounting speed: 12 nozzles and 28 feeders, 28 components can be placed at the same time, the optimal production capacity reaches 45000CPH
With the rapid development of the LED industry, the quality requirements for automation equipment products are getting higher and higher. The ETON placement machine is equipped with MARK point positioning vision + equipment recognition functions. Pursuing high speed and high stability, this is an economical and practical LED multi-function placement machine.
Exclusive patented technology
①. Electronic feeder feeding system
②. Non-stop material re-loading function
③. Auto-optimization after coordinates generated, etc
Technical parameter

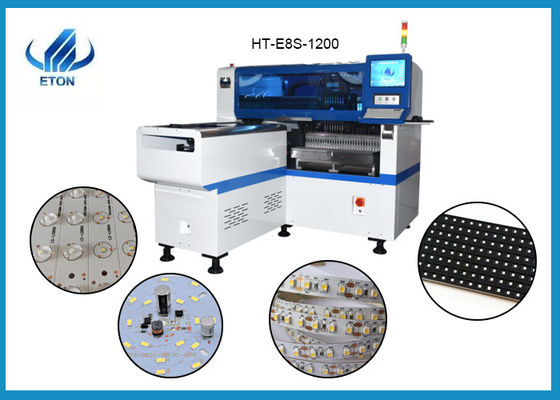

HT-E8S-1200 | |
L*W*H | 2550*1650*1550mm |
Total weight | 1700kg |
PCB thickness | 0.5~5mm |
PCB length width |
Max:1200*500mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode |
Group picking and separate placing, |
Mounting height | <15mm |
No. of camera | 2 sets of imported camera |
Mounting precision | ±0.04mm |
Mounting speed | 45000CPH |
Components Space | 0.2mm |
Feeders station | 28PCS single module |
No. of nozzles | 12PCS single module |
Power | 380AC |
Power comsumption | 4KW |
Conveyor Transmission | Max length:1200mm |
Transmission speed | >500mm |
Electrical control | Independent research and development by ETON |
X,Y,Z,Axis drive way | High-end magnetic linear motor+servo motor |
Machine Parts

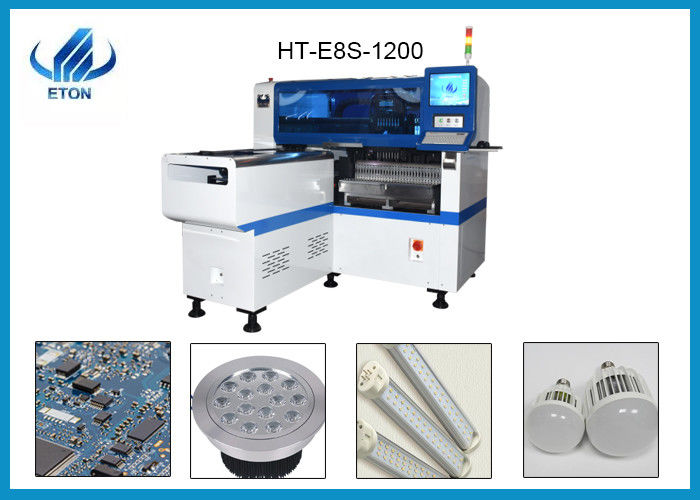

Application
Multi-functional machine can mount many kinds of products, such as DOB, bulb, lens, linear bulbs, Led corn light, flexible light
strip, power driver, panel light, ceiling light,electric board, display screen, down-light,streetlight, etc.
About our company
Shenzhen ETON Automation Equipment Co., Ltd. has always adhered to the mission of "professionalism, excellent technology, and sharing results"; "creating a national brand and building an international Chinese enterprise" as its goal; "creating value for customers and creating benefits for society" as its goal Purpose, keep moving forward.
The company has been committed to the research and development and manufacturing of placement machine equipment, always with the concept of "serving customers", keeping up with the market trend, and launching LED light board placement machines, LED flexible light strip placement machines, A series of products such as non-wire flexible light strip placement machine, LED display placement machine, copper wire lamp placement machine, lens placement machine and module placement machine, maximize customer needs.
SMT Line:
After-sales service
1. Maintenance period: 1 year (any parts that need to be repaired and replaced during the warranty period are free of charge)
2. Visit customers regularly, collect customer feedback information, and provide customers with lifetime free software upgrade services.
3. Independently develop software for customers.
4. Arrange engineers to your company to provide free machine installation, testing and training services.
5. There are service offices in India, Turkey, and Egypt, and there are local engineers who can provide you with services faster.
6. Fast delivery. (Within 30 days)
7. Can provide you with other equipment you need. (Solder paste printer, reflow soldering, etc.)
FAQ
Q1: What is the mode of transportation?
A: Our modes of transportation are flexible, including water, land and air transportation.
Q2: Is your software interface in English?
A: English interface and Chinese interface are both avaible.
Q3: How can i buy machine from you ?
A: (1)Consult us on line or by e-mail
(2)Negotiate and confirm the final price , shipping , payment method and other terms
(3)Send you the proforma invoice and confirm your order
(4)Make the payment according to the method put on proforma invoice.
(5)We prepare your order in terms of the proforma invoice after confirming your full payment .
And 100% quality check before shipping
(6)Send your order via express or by air or by sea .
