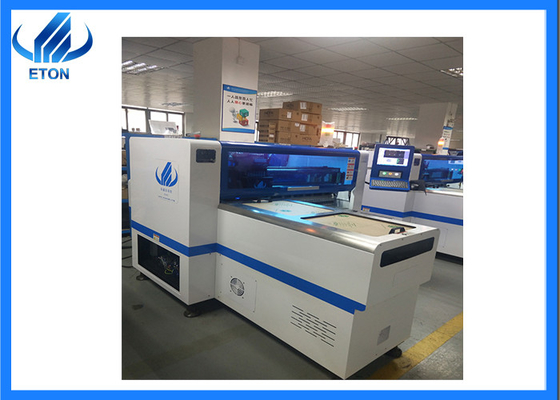

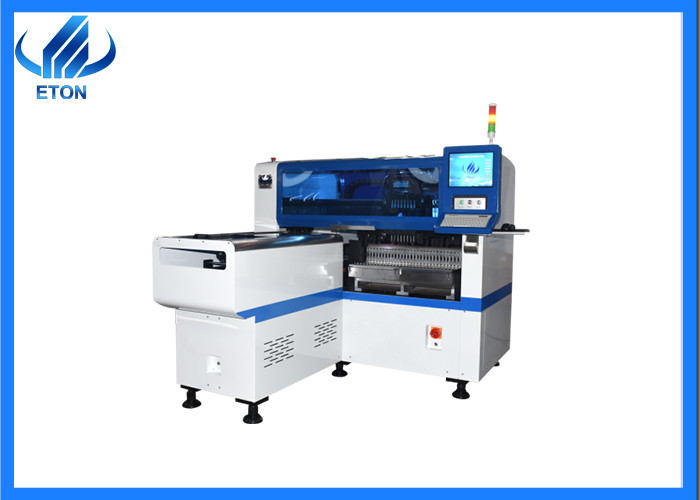

5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic

5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic
5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic

Large Image :  5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC, CE, SIRA
Model Number: HT-E8S-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: vacuum wooden boxes packaging
Delivery Time: 5-8 work days
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Pcb Size: Max:600*500mm Min:100*100mm
Pcb Thickness: 0.5-5mm Software: R&D Independently
Mounting Precision: +0.04mm No. Of Nozzles: 12PCS
High Light:

CCC Lamp Bead Placement Machine

,

45000CPH Lamp Bead Placement Machine

,

5mm Pcb Smt Assembly Equipment

Fully automatic, practical and beautiful lamp bead placement machine





Details



Single module multifunctional mounting machine

Vision for the flight identification, mark correction

Apply to LED, capacitors, resistors, shaped components, etc

Apply to led tube, panel, lens, strip, street light, etc



Features



Mechanical calibration function to ensure placement accuracy

Fully automatic, stable performance, easy operation, high safety and simple maintenance.

Unique shape, practical operation, beautiful appearance.



Technical parameter



HT-E8S-600 pick and place machine
Dimension Length* Width* Height 1550mm*1650mm*1550mm
Total weight 1500kg
PCB PCB Size Max:600*500mm Min:100*100mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
  Mounting mode Group picking and separate placing, separate picking and separate placing
O.S. System Windows 7
Software R&D independently
Display Touch screen monitor
Vision System No. of camera 2 sets of imported camera
  Vision for the flight identification, mark correction
  Mounting precision +0.04mm
  Mounting speed 45000CPH
  Components LED, capacitors, resistors, IC, shaped components, etc.
  No. of feeders station 28PCS single module
  No. of nozzles 12PCS single module
  XYZ Axis drive way High-end magnetic linear motor + servo motor
  Feeding way Electric feeder with double motor



5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 0

Company information



Name: Shenzhen ETON Automation Equipment Co., Ltd.

Location: Shenzhen, China

Our company's products: multifunctional pick-and-place machine and special pick-and-place machine (linear products)

Information: It has the world's fastest placement machine with a speed of 250,000 CPH, which is 7-10 times faster than the global placement machine. It is one of the largest manufacturers of placement machines in China. The industrial park covers an area of 50,000 square meters.



5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 1



5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 2



Certificate



Won a number of intellectual property technologies, such as 9 invention patents, 112 utility patents, 12 software copyrights, etc.



5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 3



Delivery



5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 4



  1. Packaging : vacuum wooden boxes packaging
  2. Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
  3. After sales service:
  1. Warranty period: one year
  2. Visit customers regularly and gather information
  3. Provide latest information about technology and equipment
  4. Free software upgrade



FAQ

  1. What is the direction of transmission of machines?

The transmission direction of this machine is both direction

  1. Is electrical control developed independently?

Yes, the electrical control is by ourselves and have exclusive patent technology.

  1. What is the delivery date?

5mm Pcb CCC 45000CPH Lamp Bead Placement Machine Pneumatic 5
