Product Details:
Payment & Shipping Terms:
|
| Length* Width* Height: | 2550mm*1650mm*1550mm | PCB Size: | Max:1200*500mm Min:100*100mm |
|---|---|---|---|
| PCB Thickness: | 0.5-5mm | PCB Clamping: | Adjustable Pressure Pneumatic |
| Display: | Touch Screen Monitor | Mounting Speed: | 45000CPH |
| High Light: | 45000CPH Lens Pick And Place Machine,5mm PCB Lens Pick And Place Machine,Pneumatic Smd Led Mounting Machine |
||

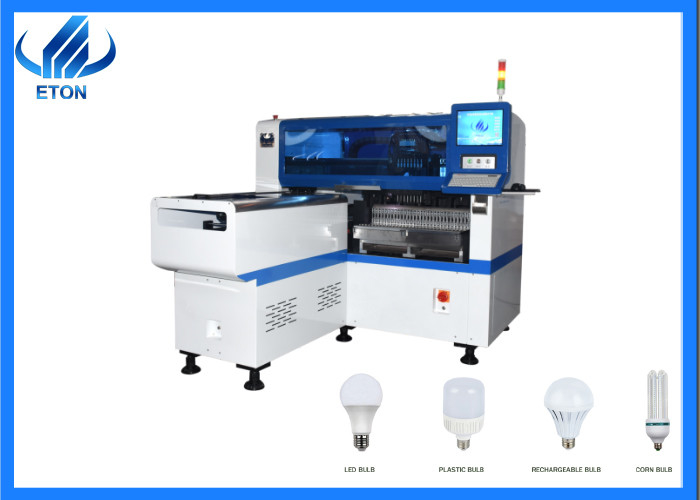

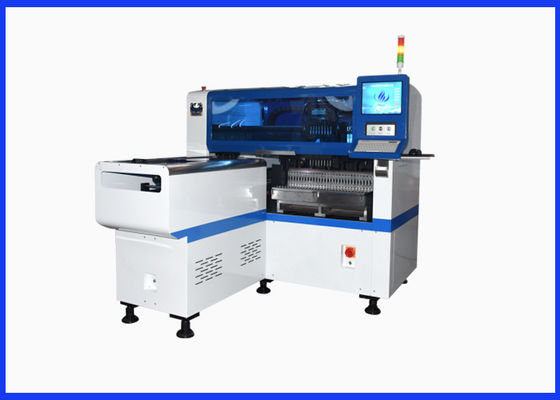

Multifunctional lens pick and place machine independently developed and produced by the manufacturer
Product
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: power driver, electric board, lens, linear bulb, household application etc.
Features
The feeding method adopts dual-motor electronic feeder, independent control is more precise.
Automatic recognition of compensation optimization, and non-stop refueling function.
Mounting technology is group picking and splitting, splitting and splitting, which is suitable for the mounting of a variety of products, such as: flexible light strips, panel lights, lenses, display screens, bulbs, tubes, etc.
Technical parameter
| HT-E8S-1200 pick and place machine | ||
| Dimension | Length* Width* Height | 2550mm*1650mm*1550mm |
| Total weight | 1700kg | |
| PCB | PCB Size | Max:1200*500mm Min:100*100mm |
| PCB Thickness | 0.5-5mm | |
| PCB Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 2 sets of imported camera |
| Vision for the flight identification, mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 45000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 28PCS single module | |
| No. of nozzles | 12PCS single module | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Certificate
Exhibition
In order to promote the company’s products efficiently, increase visibility, recognize and understand related industry knowledge, and obtain certain customer resources, our company will participate in a large number of domestic and foreign exhibitions every year, such as Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Delhi Exhibition in India, and Turkey Exhibition. , Pakistan Exhibition, etc.
Delivery
Packaging : vacuum packaging, packaging using wooden boxes.
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
After sales service:
Warranty period: one year, during this, any parts need to be repaired and replaced will be free.
Visit customers regularly and gather information
Provide latest information about technology and equipment
FAQ
Do you have any service offices overseas?
We have service office in India, and have India engineer in Delhi and Mumbai, can support you.
What do you do if something goes wrong with my machine?
First of all, we will let the engineer contact you online to solve, if the line can not solve, we will arrange for the engineer to your factory to solve.
Is your software interface in English?
English interface and Chinese interface are both available.
How is the training?
After purchasing our machine, first we will send you the installation and operation video, and then we will arrange engineers to go to your factory for installation and training, or you can arrange your engineers to study and operate in our factory.
