Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine,led Light Assembly Line,SMD LED SMT Production Assembly Line,TERMWAY T8 Pick And Place Led Light Making Mounter Machine | Weight: | 1700kg |
|---|---|---|---|
| System: | Windows 7 | Camera: | 2 Sets Of Imported Camera |
| Head: | 12 PCS | Feeder Station: | 28 PCS |
| Warranty: | 1 Year | Power Supply: | 50Hz,380V |
| Applicable Components: | 0402,0603,0805,1206,sop16 | Usage: | LED Tube Large Qty Production,LED SMT SMD |
| High Light: | Windows 7 SMD Mounting Machine,Multifunctional SMD Mounting Machine,45000 CPH Led Chip Mounter |
||

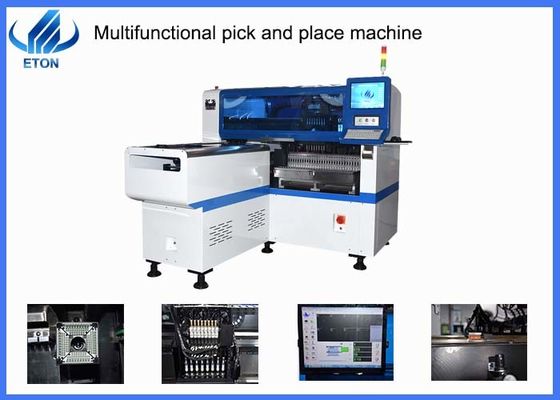

Machine feature
| Exclusive patented technology |
| Electric feeder feeding system |
| Vision alignment flight identification,Mark correction |
| Non -stop material re-loading function |
| Auto optimization after coordinates generated etc |
Technical parameter
| Model | E8S-1200 |
| Dimension | |
| Length | 2550mm |
| Width | 1650mm |
| Height | 1550mm |
| PCB | |
| PCB length width |
Max:1200*500mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Visual system | |
| No.of camera | 2 sets of imported camera |
| Mounting precision | Plus or minus 0.04 mm |
| Mounting speed | 45000 CPH |
| Nozzles | 12 PCS |
| Feeder station | 28 PCS |
| Feeding way | Electric feeder with double motor |
| X,Y,X axis drive way | High-end magnetic linear motor+servo motor |

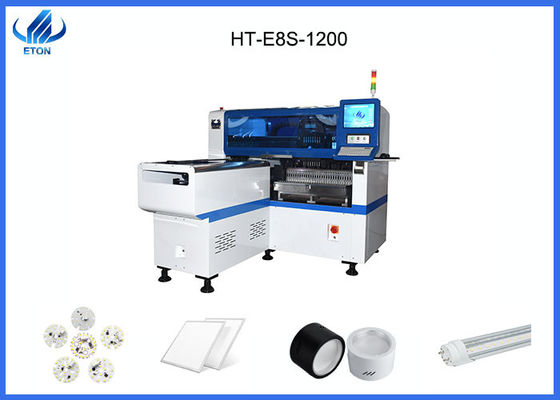

Machine-mounted products
The machine suitable for mounting many kind of led lighting,like led bulb,panel,DOB,strip,tube,display,down-light,streetlight,etc
Introducing Brand
Transportation advantage
FAQ
Q:Is it safe during the delivery?
A:All the machine is packed safely,by standard strong wooden carton with vacuum package.
Q:What is your transportation?
A:Sea transportation,land carriage and air transportation is OK.
Q:4.How is your training?
A:We will send our engineer to your factory to install machine and training freely.If client is India,we have service office in India,can support quickly.
Q:If I have no experience,The machine is easy to use?
A:Yes,our machine is designed to use easily,usually 3 to 5 days to learn how to operate.

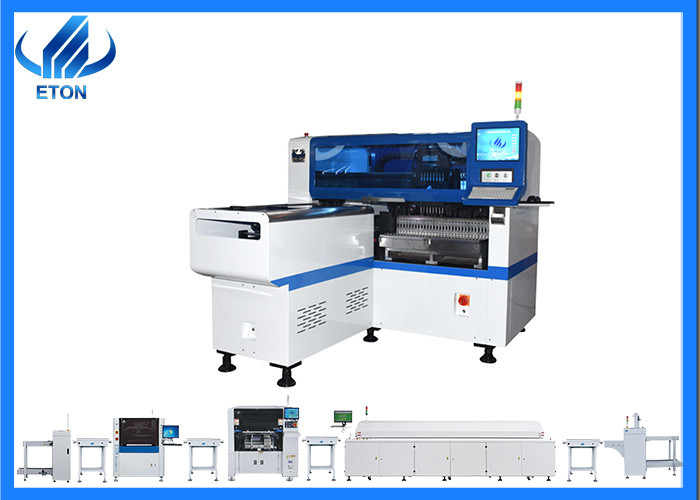

SMT line
Payment and Delivery date
1. Term of Payment:30% depositing on the date of signing contract,70% payment before delivery.
2. Delivery date:Within 30 days after receiving the deposit
About our services
♔Professional solutions:provide professional SMT full line solution
♔Warranty:1 year warranty factory service
♔Free Installation:one-site free installation to ensure smooth production
♔Free technical training:professional training of operating and maintenance
♔Technical support:24 house online support
♔Software Upgrade:offer free software upgrade whole lifetime.
♔If you buy our machine,we will arrange engineers to install,debug and training you for free,until you learn to operate the machine.
♔We have office in Mumbai and New Delhi,service is very convenient
♔Besides India,we also have local engineers in Egypt,Turkey,can provide you with timely service.
♔Chinese engineer provide online service
Package
We use vacuum wooden box packaging
Step 1:Film packaging
Step 2:Vacuum packing
Step 3:Wooden box packing
