Place Of Origin: | Guangdong, China | PCB Length Width: | Max:1200*330mm Min:50*50mm |
---|---|---|---|
PCB Thickness: | 0.5~5mm | System: | Window 7 |
Display: | Touch Screen Monitor | Software: | R&D Independently |
Total Weight: | 1700 Kg | Type: | 2021 New |
Power Supply: | 380V 50Hz | Vision System: | Vision Alignment, Mark Correction |
High Light: | 5m Strip SMT Pick And Place Machine,LED Light SMT Pick And Place Machine,Vision Alignment Smt Soldering Machine |

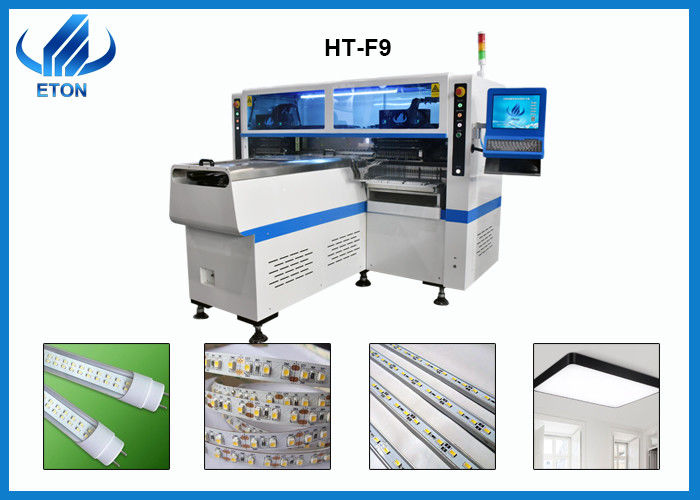

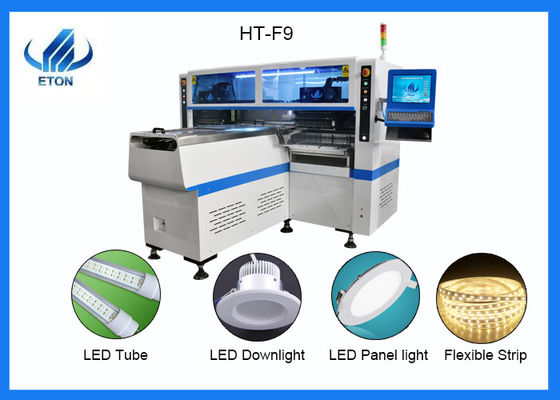

High-end automatic SMT pick and place machine for LED light smt soldering machine for 5M flexible strip light
Technical parameter:
1. Machine dimension:
Length | 2700mm |
Width | 2300mm |
Height | 1550mm |
Total weight | 1700kg |
2.PCB :
PCB Length Width |
Max:1200*330mm Min: 100*100mm |
PCB Thickness | 0.5~5mm |
PCB Clamping | Adjustable pressure pneumatic |
Mounting Mode | Group to take and group to mount |
Mounting element height | ≤5mm |
3.Vision system:
No.of camera | 5PCS (Digital camera) |
Vision alignment,Mark correction | |
Mounting Precision | ±0.02mm |
4. Production capacity:
Mounting Speed | 200000~250000CPH |
Components | LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers. |
No.of Feeders station | 68 PCS |
No.of nozzles | 68 PCS |
Features:
1.Dual arm magnetic linear LED high-speed pick and place machine, Two arm are controlled by one computer.
2. Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with producing with 4 types materials at the same time with high capacity, available for board with any proportion of led chip and resistor.
3. High-end magnetic linear motor + servo motor, greatly improve the stability of machine placement and increase the accuracy of machine placement.
4. Easy to maintain: simple design and easy to maintain. The replacement parts cost is low, and the maintenance cost is low.
5.The whole machine software, circuit and hardware structure are all independently developed by our company, with more than 100 independent intellectual property rights.
6.Dual arm four module, 17 nozzles for each mounting part, part A/B/C/D can be mounted separatly or synchronously.
7. Powerful function:
It is equipped with 68 suction nozzles and 68 feeders, which can place and absorb 68 components at the same time, which can complete the mounting requirements of a variety of LED products.
8. High precision:
Equipped with 5 imported cameras, which are two feeder debugging cameras, 2 nozzle debugging cameras, and 1 Mark camera, which maximizes the accuracy of machine placement components.
Application:
1.Suitable for mounting many kinds of products, such as LED tube, panel, down-light, Solar lamps, wall lamps, ceiling lamps, street lamps, table lamps and linear lamps.
2.Can mount 0.6m, 0.9m, 1.2m hard light board, 0.5m, 1m soft light strip.
3.Components: LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
