Product Details:
Payment & Shipping Terms:
|
| System: | Windows 7 | No. Of Camera: | 5PCS(Digital Camera) |
|---|---|---|---|
| No. Of Feeders Station: | 68PCS | No. Of Nozzles: | 68PCS |
| Feeding Way: | Electric Feeder With Double Motor | Size: | Max:1200*330mm Min:100*100mm |
| High Light: | Exquisite Panel Light Placement Machine,250000CPH Panel Light Placement Machine,CCC PCB Mounting Machine |
||

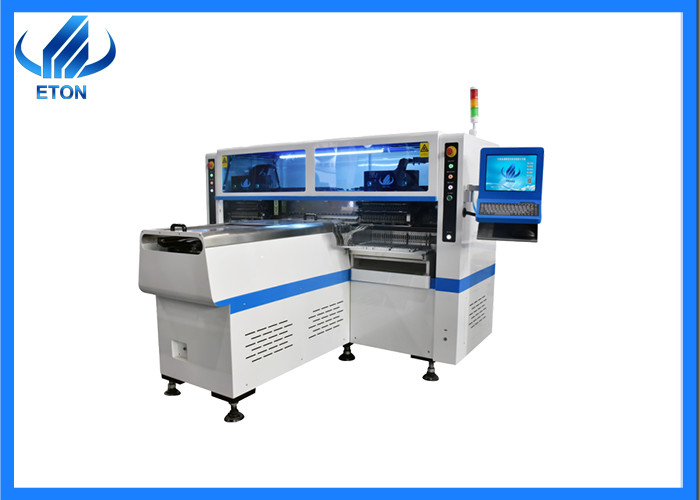

Exquisite appearance PCB PCBA high-speed panel light placement machine
Main feature
Straight-line structure is simple, easy to install and maintain.
Highly automated and intelligent operation, no pollution
Place 4 different materials at the same time, with a production capacity of 200,000 points
Components (lamp beads, resistance ratio) one-time without waiting for placement
Product
Components: with LED3014/3020/3528/5050 or resistors, capacitors, bridge stacks, etc.
Products: Tubes, flexible light strips, panel lights, etc.
Technical parameter
| HT-F9 ultra high-speed pick and place machine | ||
| Dimension | Length* Width* Height | 2700mm*2300mm *1550mm |
| Total weight | 1700kg | |
| PCB | Size | Max:1200*330mm Min:100*100mm |
| Thickness | 0.5-5mm | |
| Clamping | Adjustable pressure pneumatic | |
| Mounting mode | Group to take and group to mount | |
| O.S. | System | Windows 7 |
| Software | R&D independently | |
| Display | Touch screen monitor | |
| Vision System | No. of camera | 5PCS(Digital camera) |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.02mm( repeat precision) | |
| Mounting speed | 200000-250000CPH | |
| Components | LED3014/3020/3528/5050, capacitors, resistor, bridge rectifiers, etc | |
| No. of feeders station | 68PCS | |
| No. of nozzles | 68PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Company: It is a national high-tech enterprise and a double-soft enterprise dedicated to the research and development, production, sales and after-sales technical service of SMT placement machines.
Factory: In 2020, ETON Industrial Park, covering an area of 50,000 square meters, will be completed in Jiangxi, with 45,000 square meters of production workshops, advanced processing and manufacturing centers, and more stringent product quality
Certificates: 9 invention patents, 12 software patents, 112 utility patents and many other intellectual property technologies.
Service
The machine will be well tested before leaving the factory and before shipping.
Provide engineers to the factory for teaching, free installation and training
Support and provide long-term product updates, industry trends and company dynamic information
We provide online Q&A and technical consulting services for machine failures.
FAQ
What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
How big a PCB board can be posted?
Max:1200*300mm, Min: 100*100mm
Is this machine difficult to operate?
It’s not difficult at all, it takes about 3-5 days to learn how to operate the machine.
