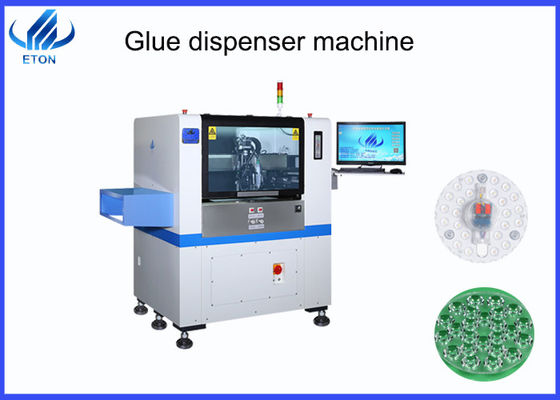

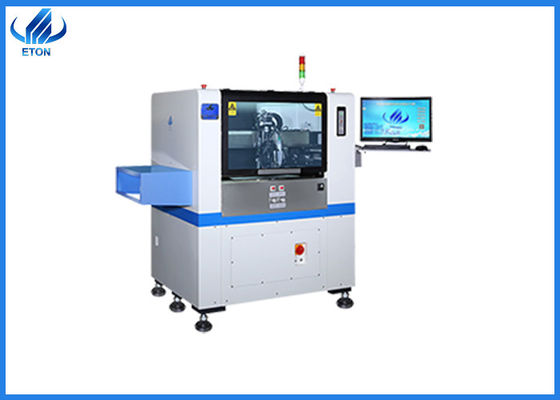

Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW

Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW
Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW

Large Image :  Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC\CE\SIRA
Model Number: HT-D12
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: EXW USD 25000/sets
Packaging Details: Wooden case
Delivery Time: 15~30 days
Payment Terms: L/C, T/T
Supply Ability: 50 pcs per month
Detailed Product Description
Product Name: Automatic Glue Dispenser Machine Payment: T/T
Length: 1800mm Weight: 800kg
System: Windows 7 Dispensing Speed: 90000 CPH
Warranty: 1 Year Application: SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine
Power Supply: 220V/110V Condition: 100% Original
Highlight:

Length 1800mm SMD PCB Machine

,

Pneumatic Injection Value SMD PCB Machine

,

1.5KW Glue Dispenser Machine

smt professional manufacturer SMD PCB machine with automatic glue dispenser machine



Why choose us?



  • We have more than ten years of experience in the SMT industry
  • Is a famous SMT brand in China
  • The largest manufacturer of automatic high speed pick and place machine
  • There is 50000 square meters modern intelligent Industrial Park,equipped with an advanced processing and manufacturing centre.
  • There are fastest machine in the world.

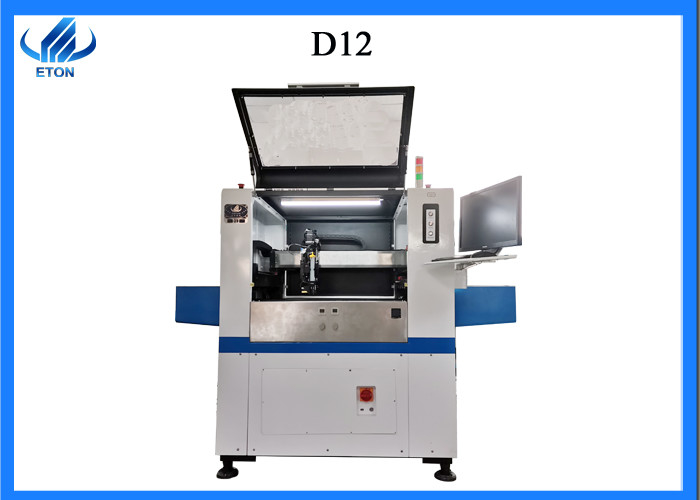

Technical parameter HT-D12



Technical parameter
Dimension 1800*1050*1550mm
Total weight 800kg
Max PCB size 1200*500mm
PCB clamping Adjustable pressure pneumatic
Dispensing mode Pneumatic injection value
No.of camera 1 set industry camera
Dispensing accuracy 0.1mm
Dispensing speed 90000CPH
Drive way Magnetic linear motor drive
Heating temperature 200℃
Power consumption 1.5KW



Machine characteristics of ETON glue dispenser HT-D12



English interface option,easy to operate
CCD positioning system,visual positioning compensation automatically,correct the deviation of PCB.
Large size track,suitable for different size of PCB
Full time monitoring of glue volume,auto-prompting low glue volume
Dispensing head constant temperature function,ensure the glue in liquid
Control the dispensing value in milliseconds,ensure the conformity of glue volume
Online visual programming,more convenient
intelligent dispensing head ensure good performance,high efficiency and lower glue wasting.



Application



Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW 0



Our client

We exported machine to more than 20 countries.such as in India PK,Surya,Skyquad are our client.



Showroom of ETON



Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW 1



Questions you might ask



Why do we adopt the smart electronic feeders? Our machines adopt the smart electronic feeders which are more stable,universal and intelligent. The feeding speed of electronic feeder is faster than the traditional pneumatic feeder.It can avoid the cost and drop of materials effectively.

What's about the guarantee of the machines?



The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.



What are the main LED products o our machines for?



There are different machines in our company and different machines apply to different LED lights. The main products we can apply:bulb tube strip lamp panel. Down light,streetlight,ceiling light.wall washer light and so on.
What kind of service I can have, if I buy machine from ETON ? We will give you install and training. It is free for you. And we will sent engineer with you.
It’s hard to use the machine? No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.



Remark

  • The delivery period is within four weeks after receiving the deposit
  • Term of payment:30% depositing on the date of signing contract,70% payment before delivery.
  • Quotation in valid:30 days



Our excellent services

♔Professional solutions:provide professional SMT full line solution

♔Warranty:1 year warranty factory service

♔Free Installation:one-site free installation to ensure smooth production

♔Free technical training:professional training of operating and maintenance

♔Technical support:24 house online support

♔Software Upgrade:offer free software upgrade whole lifetime.



Transportation advantage



Our company provides three modes of transportation, including sea, land, and air.



Our company products

Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW 2

Length 1800mm SMD PCB Machine Pneumatic Injection Value 1.5KW 3
