Product Details:
Payment & Shipping Terms:
|
Heating Temperature: | 200℃ | Running Accuracy: | 0.001mm |
---|---|---|---|
Dispensing Speed: | 90000CPH | Length* Width* Height: | 1800mm*1050mm*1550mm |
Max PCB Size: | 1200*500 Mm | 1200*500 Mm: | Magnetic Linear Motor |
High Light: | CCC Pneumatic Jet Valve Dispenser,90000CPH Pneumatic Jet Valve Dispenser,Linear Drive Glue Dispenser Machine |

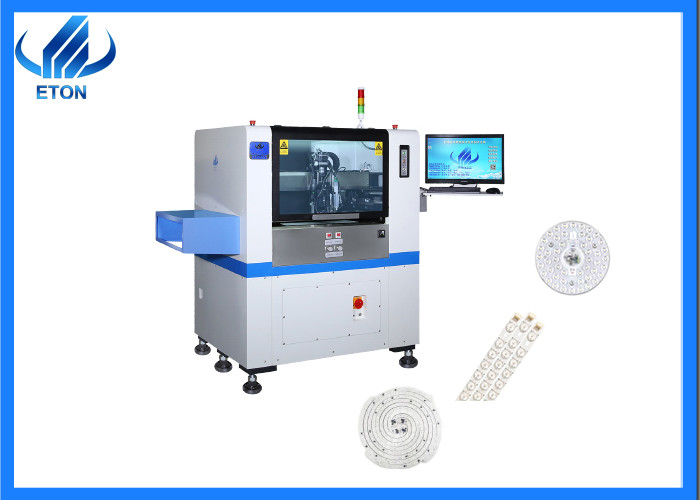

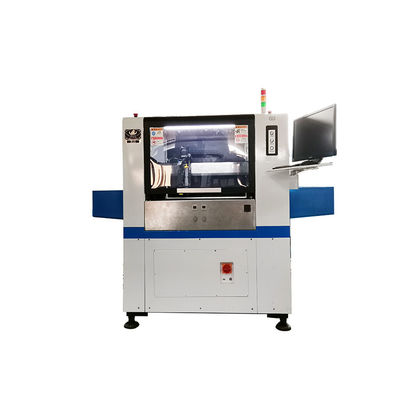

Low consumption rate linear drive pneumatic jet valve dispenser
Feature
Technical parameter
HT-D12 glue dispenser machine | ||
Dimension | Length* Width* Height | 1800mm*1050mm*1550mm |
Total weight | 800kg | |
PCB | Max PCB Size | 1200*500 mm |
Dispensing mode | Pneumatic injection value | |
PCB Clamping | Adjustable pressure pneumatic | |
Vision System | No. of camera | 1 set of industrial camera |
Dispensing accuracy | 0.1mm | |
Dispensing speed | 90000CPH | |
Heating temperature | 200℃ | |
Running accuracy | 0.001 | |
Power | 220 AC 50Hz | |
Power consumption | 1.5KW | |
Drive way | Magnetic linear motor | |
Max running speed | 1200mm/ sec | |
Electrical control | Independent research and development by ETON |
Company information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word.
Certificate
FAQ
What are the normal requirements about LED pick and place machine?
Because the patch is the key process in producing LED, there are many normal requirements: Stable, High-speed, High-precision, Intelligent, Durable etc..
What are the main LED products do our machines for?
There are different machines in our company, and different machines apply to different LED lights. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light and so on.
Do our machines only for LED lights?
No, our machines apply to not only LED light but also other products.
