Product Details:
Payment & Shipping Terms:
|
| Mounting Precision: | +0.04mm | No. Of Feeders Station: | 80PCS |
|---|---|---|---|
| No. Of Nozzles: | 40PCS | Feeding Way: | Electric Feeder With Double Motor |
| PCB Size: | Max:500*310mm Min:50*50mm | Total Weight: | 4500kg |
| High Light: | Four Modules Smt Mounter Machine,140000CPH Smt Mounter Machine,CCC Smt Pick And Place Equipment |
||

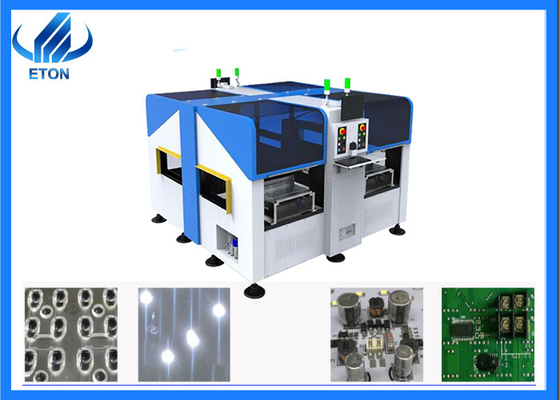

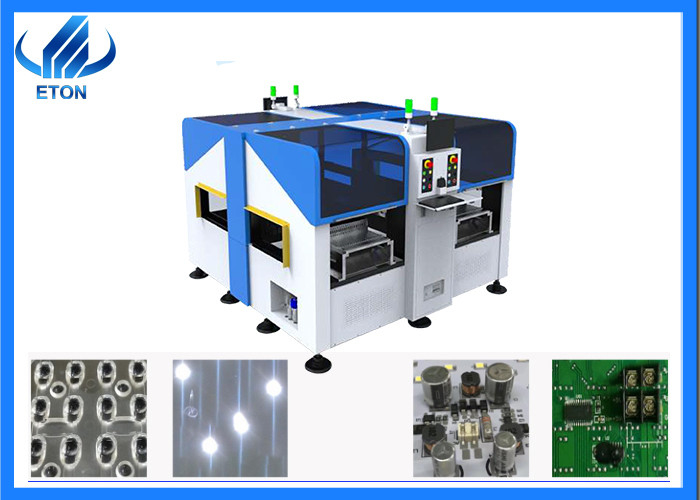

Four modules automatically optimize the LED production line to drive the placement machine
Product description
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Application: electric board, DOB, down light, bulb, panel light, display, etc
Technical parameter
| RT-4 pick and place machine | ||
| Dimension | Length* Width* Height | 2086mm*2237mm*1500mm |
| Total weight | 4500kg | |
| PCB | PCB Size | Max:500*310mm Min:50*50mm |
| PCB Thickness | 0.1-6mm (Fixtures required for less than 0.6mm) | |
| PCB Clamping | Electric clamping | |
| Mounting mode | Group picking and separate placing, separate picking and separate placing | |
| Vision System | No. of camera | 8 PCS |
| Vision alignment, Mark correction | ||
| Mounting precision | +0.04mm | |
| Mounting speed | 120000-140000CPH | |
| Components | LED, capacitors, resistors, IC, shaped components, etc. | |
| No. of feeders station | 80PCS | |
| No. of nozzles | 40PCS | |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor | |
| Feeding way | Electric feeder with double motor | |
Company information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service.
Delivery
By air: Small parts packaging
By sea: Pack and ship large and heavy machines
By railway: According to customer requirements
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
Services
FAQ
|
Q1: Are you a manufacturer or trading company? |
Manufacturer. We have our own industrial park. |
|
Q2: How can you make sure we will receive the machine with high quality? |
Our team will inspect each batch of machine before delivery, we have certificates of CE,CCC,SIRA.
|
|
Q3: How is your service? |
Our technicians can come to train and install machines, etc. We regularly visit customers to understand customer usage and collect customer opinions. We regularly provide customers with the latest production technology and equipment information. |
