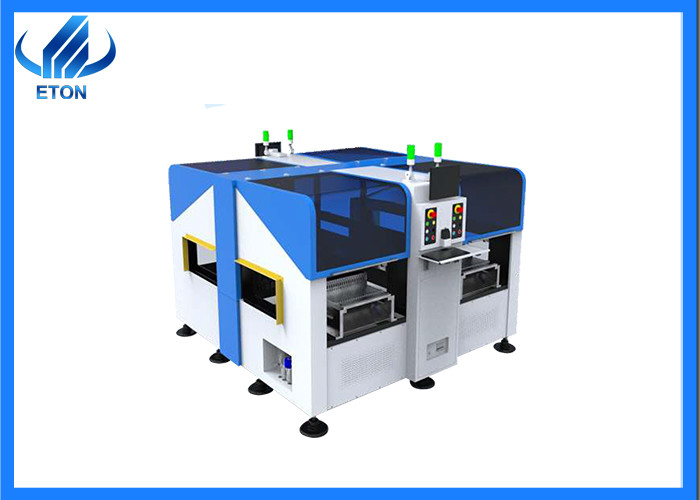

Good stability SMT parts vacuum adsorption SMD production line placement machine
Product description
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.

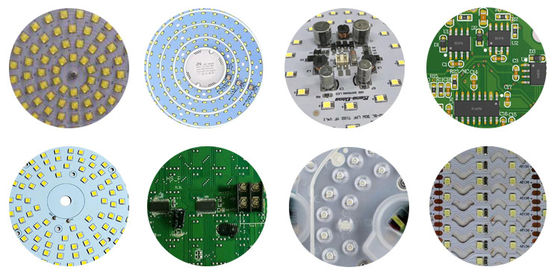

Application: electric board, DOB, down light, bulb, panel light, display, etc
Technical parameter
| Length*width*height |
2086*2237*1500mm |
| Weight |
4500kg |
| PCB size |
Max:500*310mm Min:50*50mm |
| PCB thickness |
0.1-6mm |
| PCB clamping |
Electric clamping |
| Mounting mode |
Group picking and separate placing, separate picking and separate placing |
| No. of camera |
8 PCS |
| Features |
Vision alignment, Mark correction |
| Mounting precision |
+0.04mm |
| Mounting speed |
120000-140000CPH |
| No. of feeders station |
80PCS |
| No. of nozzles |
40PCS |
| XYZ Axis drive way |
High-end magnetic linear motor + servo motor |
| Feeding way |
Electric feeder with double motor |
| Component space |
0.2mm |
| Power consumption |
16KW |
| Position mode |
Optical |
Company information
Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D manufacturing, sales and service.
Certificate
Our company has independently developed a number of intellectual property technologies, such as: 9 invention patents, 12 software patents, and 112 utility patents.
Remarks
Packaging : vacuum wooden boxes packaging
Delivery
By air: Small parts packaging
By sea: Pack and ship large and heavy machines
By railway: According to customer requirements
Terms of payment: 30% depositing on the date of signing contract,70% payment before delivery.
Services
- Warranty period: one year
- Provide latest information about technology and equipment, free software upgrade
- 24 hours online service and technical support, solve your problem rapidly
- Design and provide the entire production line for you according to your needs
FAQ
Q1: Are you a manufacturer or trading company?
A1: manufacturer. We have our own industrial park.
Q2: What about the shipping methods?
A2: A variety of transportation methods for you to choose. By sea, air and road.
Q3:What’s your delivery time?
A3:Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q4:How can you make sure we will receive the machine with high quality?
A4: Our team will inspect each batch of machine before delivery, we have certificates of CE,CCC,SIRA.
