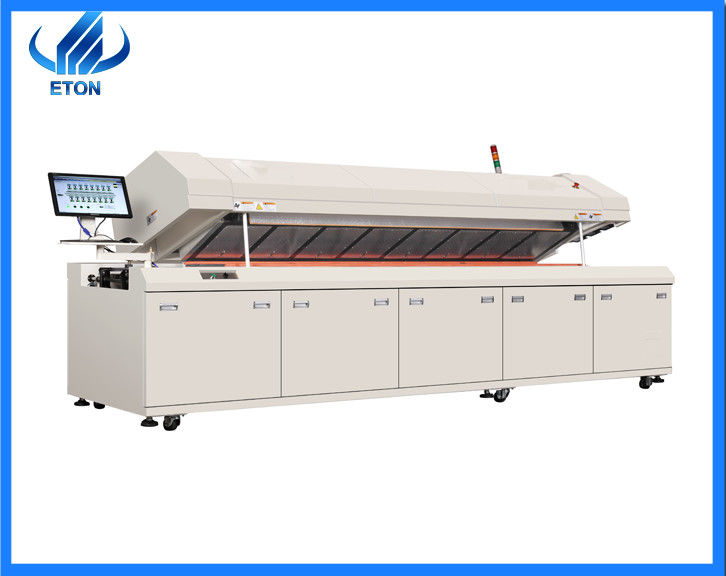

PLC PC 8 Zones SMT Reflow Oven Machine 40kw 1 Year Warranty

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  PLC PC 8 Zones SMT Reflow Oven Machine 40kw 1 Year Warranty

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC\CE\SIRA
Model Number: ET-R8

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: Wooden case
Supply Ability: 50 PCS per month
Detailed Product Description
Payment: T/T Delivery: Within 30 Days
Warranty: 1 Year Product Name: 8 Zones Reflow Oven
Weight: 900 Kg Dimension: 4600×1200×1490mm
High Light:

8 Zones SMT Reflow Oven

,

PLC PC SMT Reflow Oven

,

40kw 8 Zones Reflow Oven

Reflow Oven Reflow Soldering Oven for SMD SMT Reflow Soldering Oven Machine Manufacturer



Description of reflow soldering



Reflow soldering is English Reflow. By remelting the solder paste pre-distributed on the printed board pads, the soldering of the mechanical and electrical connections between the solder ends or pins of the surface mount components and the printed board pads is realized.



Parameter of reflow oven



Model ET-R8
Heating System Number of heating zones UP 8/BOTTOM 8
Number of cooling zones Up1/bottom1
Length of heating zones 3000MM
Heating mode hot air
Cooling Mode Force air
Conveyor speed 0-1500mm/min
Upper hood method Auto
Control system Power supply 5line 3phase 380V 50/60Hz
Total power 40kw
Starting power 38kw
Temp. setting range Room temperature-300℃
Temp. deviation on PCB ±2℃
Temp. control method PLC & PC
General Dimension(L*W*H) 4600×1200×1490mm
Weight 900KG



Feature of 8 zones reflow oven



  • No.1 The unique advanced long life heating system



1.The heating system adopt the Swedish nickel heater with efficiency and energy-saving. The peak wave length of the radiation power is 4UM with curved surface reflector to the rising temperature speed, improve the thermal efficiency. And the special forced-air circulation system make PCB and the component heated uniform and eliminate the "shadow effect" completely .

2.Using special high temperature resistant protection system in heating preservation system and special iron in furnace



  • No.2 Smooth and reliable transmission system



1.The transmission system use STK adjustable speed motor imported from Taiwan matched with the 1:150 turbine reducer can running  smooth , speed range can be arrived at 0-1500mm/min.

2. Independent wheel structure support and match stainless belt to make the running smoothly and the speed precision is up to ±20 mm/min .

Special stainless belt: durable and wear-resistant, not easy to deform and long life



  • No.3 Stable and reliable electrical control system



1. It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating

2. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.

3. Failure diagnosis and sound light alarm.Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.





Why choose us?



  • More than ten years of experience in the machine industry
  • A company leading the SMT files in China
  • Export pick and place machine,reflow soldering and printing machines enjoy a good reputation at abroad.
  • Has its own company’s industrial park with integrated production processes
  • Own R&D teams:Japan,Korea,Hong Kong,America,Taiwan,etc.

PLC PC 8 Zones SMT Reflow Oven Machine 40kw 1 Year Warranty 0



As SMT manufacturer ,we can do for you:


1. We provide full SMT solution for you.
2. We provide core technology with our machine.
3. We provide the most professional tech service.
4. We have wealthy experience on SMT files.





FAQ:



Q: How long is the time of delivery?

Generally, the test delivery period is one month.



Q: If my order is very urgent, how long you can proceed?

We have helped many clients with their urgent demand. If your order is urgent, please check with our specialists to see if we can help.



Q: What’s the terms of payment? What about the trade term?

T/T is OK. You can choose FOB Shenzhen.



Q: Is this machine difficult to operate?

No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.



Package and delivery



❆ Standard export vacuum waterproof package

❆ Strong wooden package for ensure safely delivery of heavy and large equipment

❆ Delivery:By air,sea and railway.
